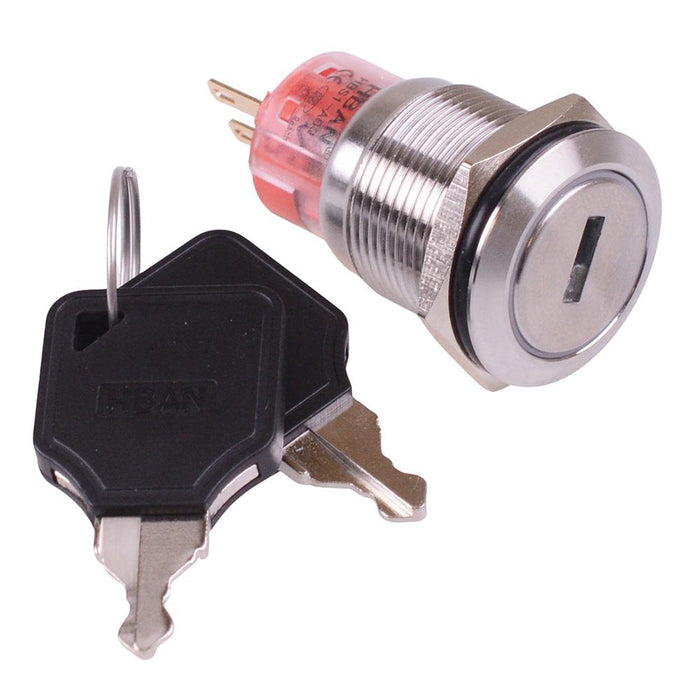

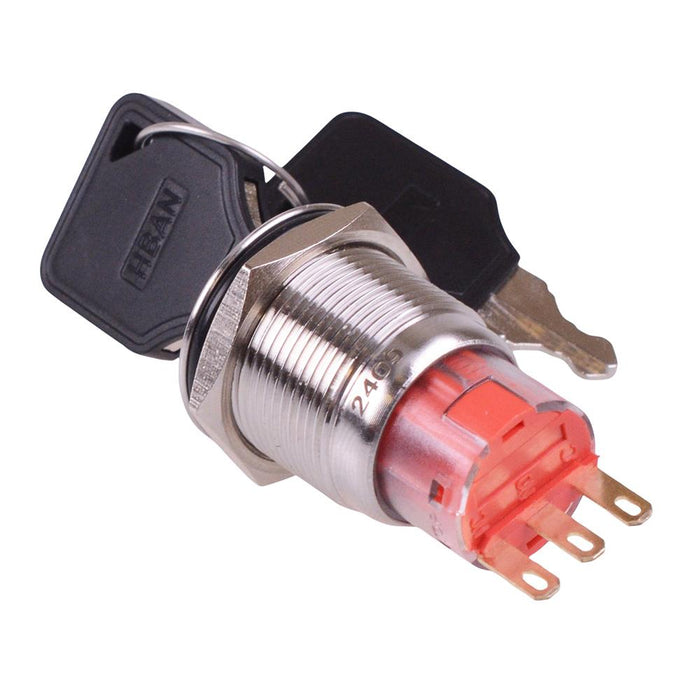

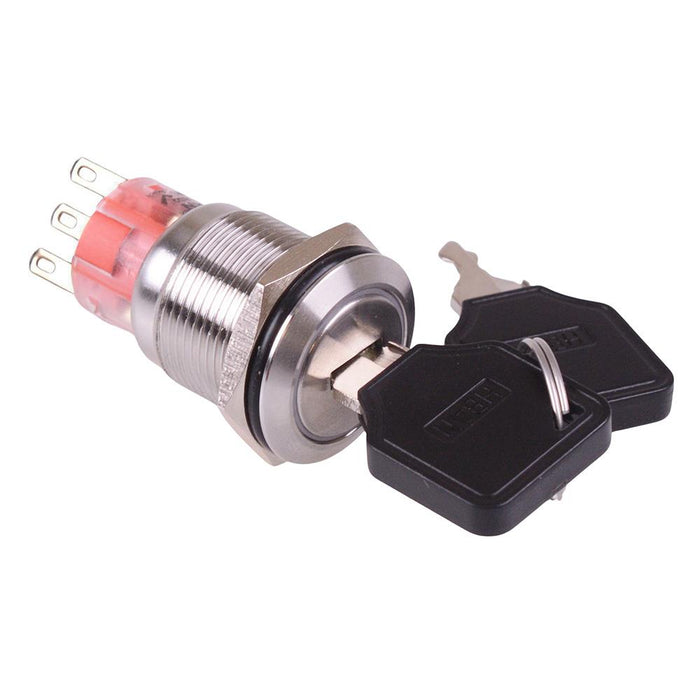

2 Position Latching 19mm Stainless Steel Key Switch IP40 NO/NC

SKU 490330

MPN: HBS1-AGQ19F-11Y/21/J/S

Availability:
46 in stock
Original price £9.02 - Original price £9.02
Original price
£9.02
£9.02 - £9.02
Current price £9.02
2 position latching key switch featuring a stainless steel body and 19mm panel cut-out. The switch featurres NO/NC contacts and quick connect terminals, suitable for a wide range of applications.

  • 2 position latching operation
  • NO/NC contacts
  • Common keys
  • Stainless steel body
  • Panel cut-out: 19mm
  • Panel thickness: 11mm max
  • 2.8x0.5mm quick connect / solder terminals
  • Rating: 5A 250V
  • Dimensions: 38.8 x 21.8mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Material Silver Alloy
    Contact Rating 5A 250V
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Key Index Angle 90°
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel Mount
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 19mm
    Protection Level Silver Alloy
    Switch Operation On-On
    Terminal Type Quick connect
    Voltage Rating 250V
