2 Position Latching 22mm Selector Switch NO/NC

SKU 490310

MPN: HBY5E-11X/21

Availability:
28 in stock
Original price £4.54 - Original price £4.54
Original price
£4.54
£4.54 - £4.54
Current price £4.54

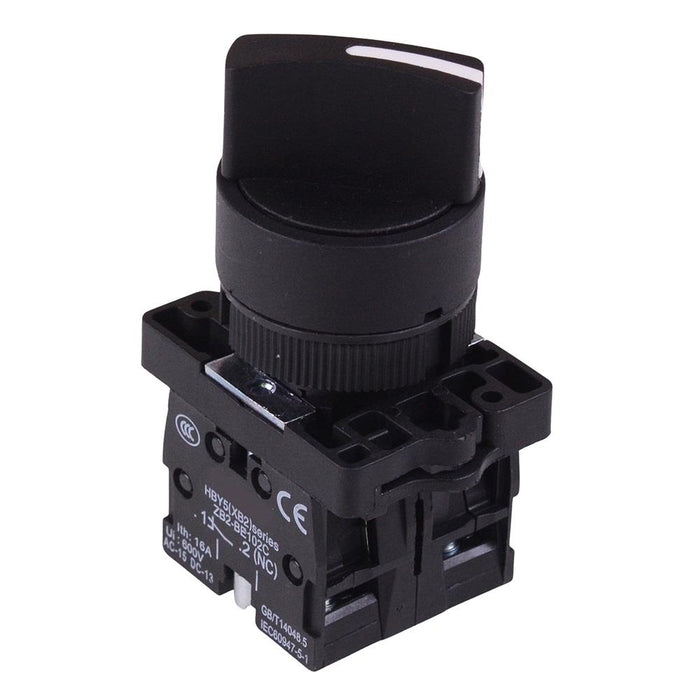

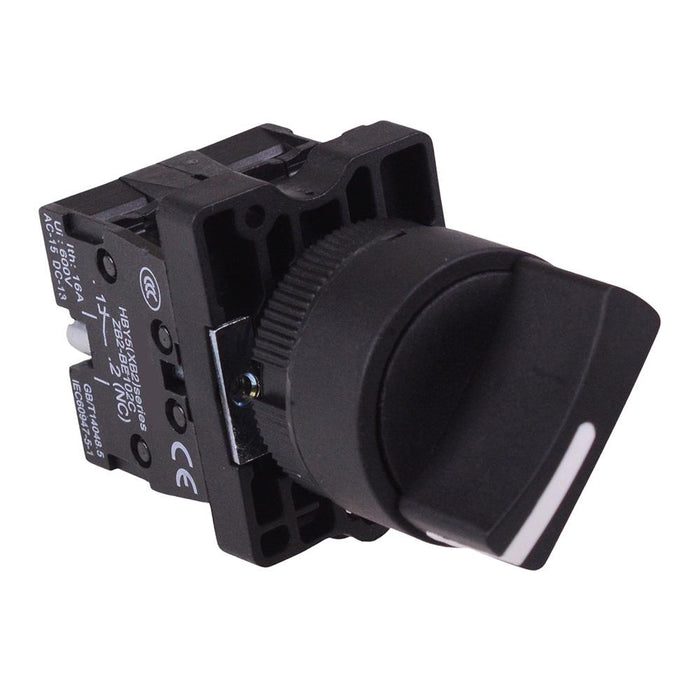

Black industrial 2 position selector switch featuring 1NO1NC contacts, suitable for 22mm panel cut-outs. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch is suitable for a wide range of industrial applications.

  • Latching 2 position operation
  • Corrosion resistant plastic construction
  • Interchangeable contact blocks and operators
  • Panel thickness: 5mm max
  • Panel cut-out: 22mm
  • Rated insulation voltage: 400V
  • Rated thermal current: 10A
  • 1NO and 1NC contacts
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration 1NO-1NC
    Contact Rating 10A 400V
    Current Rating 10A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 22mm
    Panel Thickness 5mm
    Terminal Type Screw
    Voltage Rating 400V
