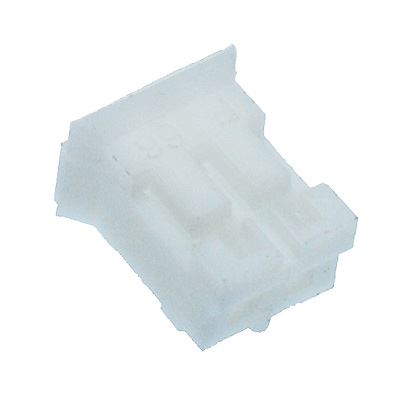

2-Way 2.00mm PCB Connector Housing

SKU 481911

MPN: 481911

Availability:
248 in stock
Original price £0.13 - Original price £0.13
Original price
£0.13 Inc VAT
£0.13 - £0.13
Current price £0.13 Inc VAT
2 way PCB connector housing featuring a 2.00mm pitch, suitable for mating with vertical or horizontal headers and compatible with JST PH connectors.

  • Ways: 2
  • Pitch: 2.00mm
  • Housing material: PA66 UL94V-2
  • Wire range: 24-32AWG
  • Terminals are not included
  • Specification
    Back order lead time 45 Days
    Current rating 2A
    Housing material PA66
    Moq 5
    Mounting type Cable Mount
    Number of ways 2
    Operating temperature -25°C to +85°C
    Pitch 2.00mm
    Termination method Crimp
    Voltage rating 100VAC
    Wire range 24-32AWG
