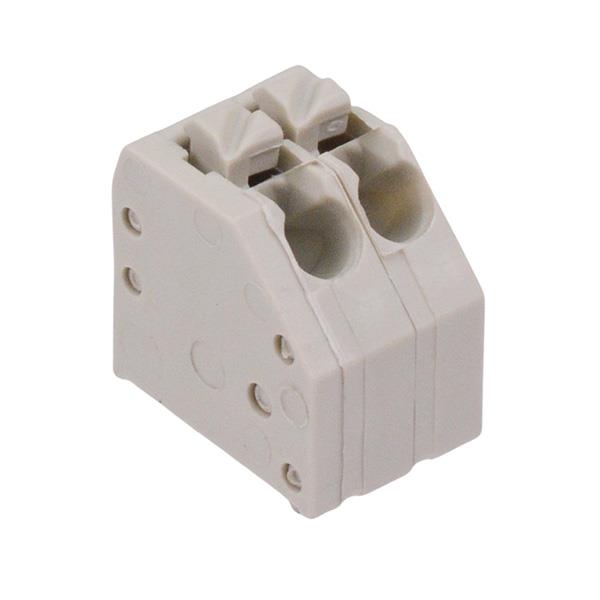

2-Way 3.5mm 45° Screwless Push-In PCB Terminal Block Grey 6A 300V
by PTR HARTMANN
SKU 488477
MPN: AK4291/02KD-3.5-PEBBLE-GREY
Availability:
121 in stock
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
£0.48
£0.48
-
£0.48
Current price
£0.48
2 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 3.5mm pitch and 45° wire entry to the board. The terminal blocks are rated up to 6A, making them suitable for a wide range of PCB applications.
2 pole 3.5mm pitch Push-in connection With lever 45dg wire entry to the board Material: PA66 Rating: 6A 300V Wire size: 22-16AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Grey |
| Contact Material | Copper Alloy |
| Current Rating | 6A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Push Clamp |
| Voltage Rating | 300VAC |
| Wire Range | 22-16AWG |
