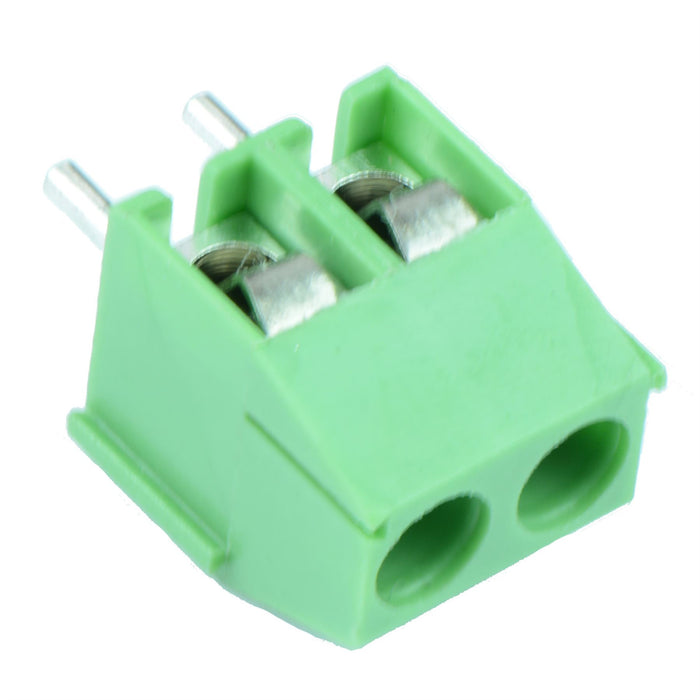

2-Way 3.5mm PCB Terminal Block 10A
SKU 550953
MPN: 550953
Availability:
Out of stock
Sold out
Original price
£0.25
Original price
£0.25
-
Original price
£0.25
Original price
£0.25
Current price
£0.21
£0.21
-
£0.21
Current price
£0.21
Terminal block manufactured from PA66 featuring slotted screws and 3.5mm pitch suitable for PCB applications.
2 Ways Rating: 10A 125VAC Wire range: 18-24AWG Housing material: PA66 UL 94V-0 Contact material: tin plated brass
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Screw |
| Voltage Rating | 125VAC |
| Wire Range | 18-24AWG |
