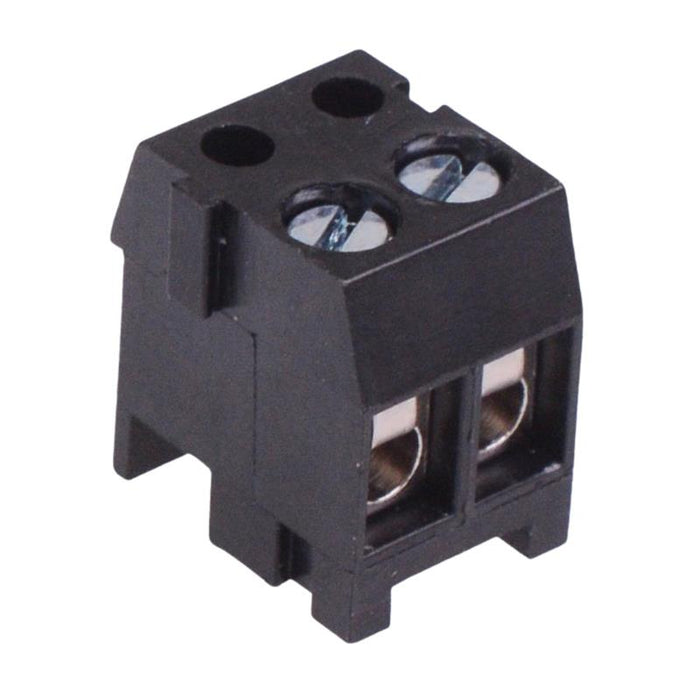

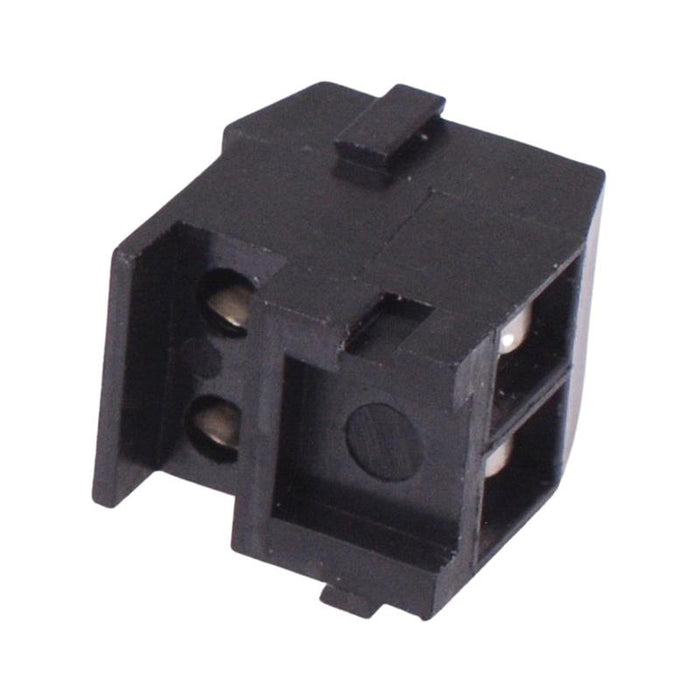

2-Way 3.5mm Pin Strip Pluggable Terminal Block 8A 300V
by Degson
SKU 488716
MPN: DG333K-3.5-02P13
Availability:
1995 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.33
£0.33
-
£0.33
Current price
£0.33
2 pole pluggable terminal block featuring 3.5mm pitch and horizontal cable entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
2 pole 3.5mm pitch Connects onto pin strips on circuit boards Horizontal wire connection Vertical plugging on pin strip Material: PA66 Rating: 8A 300V Wire size: 28-16AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| Housing Material | PBT |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -30°C to +120°C |
| Pitch | 3.5mm |
| Voltage Rating | 300V |
