2 Way 3.96mm Housing Connector
SKU 484679
MPN: 484679
Availability:
1378 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
-
£0.12
Current price
£0.12

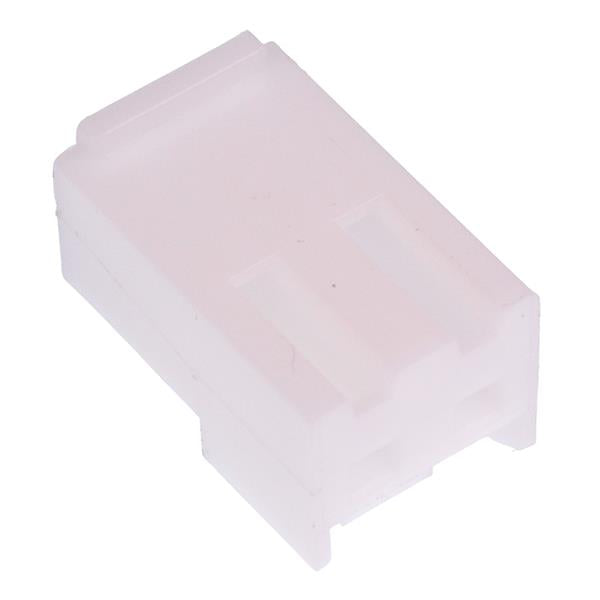

Single row 2 way pin housing featuring 3.96mm pitch and straight orientation. The housing is suitable as a replacement for JST VH connectors.
3.96mm pitch PA66 housing Rated Current: 10A Rated Voltage: 250V Wire range: 18-26AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Pins | 10 |
| Number of Ways | 2 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 3.96mm |
| Termination Method | Crimp |
| Voltage Rating | 250VAC |
| Wire Range | 26-18AWG |
