2 Way 3.96mm PCB Female Housing
SKU 481125
MPN: 481125
Availability:
812 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.14
-
£0.14
Current price
£0.14

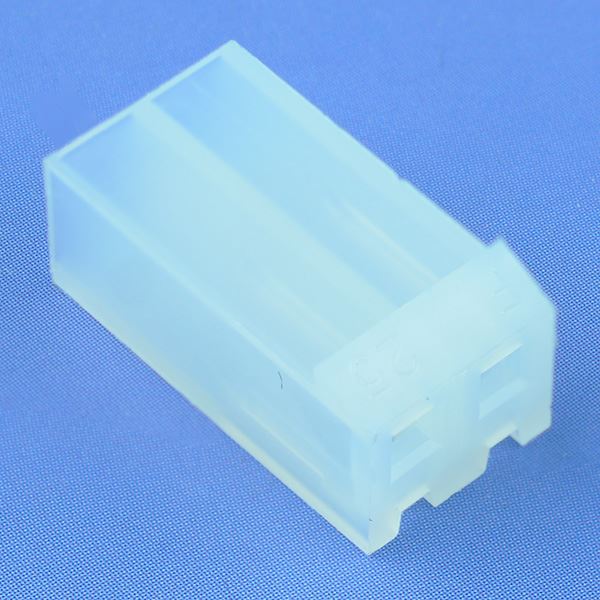

Single row 2 way pin housing featuring 3.96mm pitch and straight orientation. The housing is suitable as a replacement for Molex 5239 connectors.
3.96mm pitch PA66 housing Rated Current: 7A Rated Voltage: 250V Wire range: 18-24AWG
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 7A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | Cable Mount |
| Number of Ways | 2 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 3.96mm |
| Termination Method | Crimp |
| Voltage Rating | 250VAC |
| Wire Range | 18-24AWG |
