2-Way 5.00mm 45° PCB Terminal Block 20A 300V
by Degson
SKU 488773
MPN: DG103-5.0-02P14
Availability:
2330 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
£0.23
£0.23
-
£0.23
Current price
£0.23

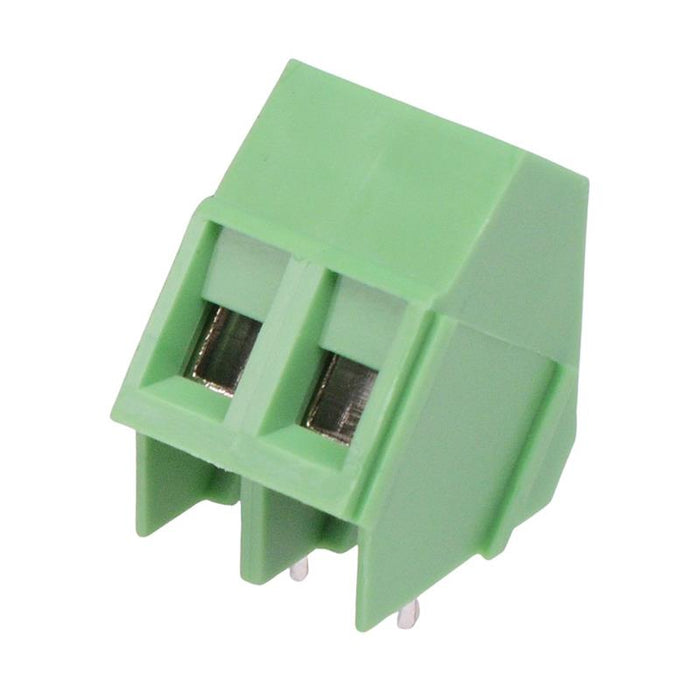

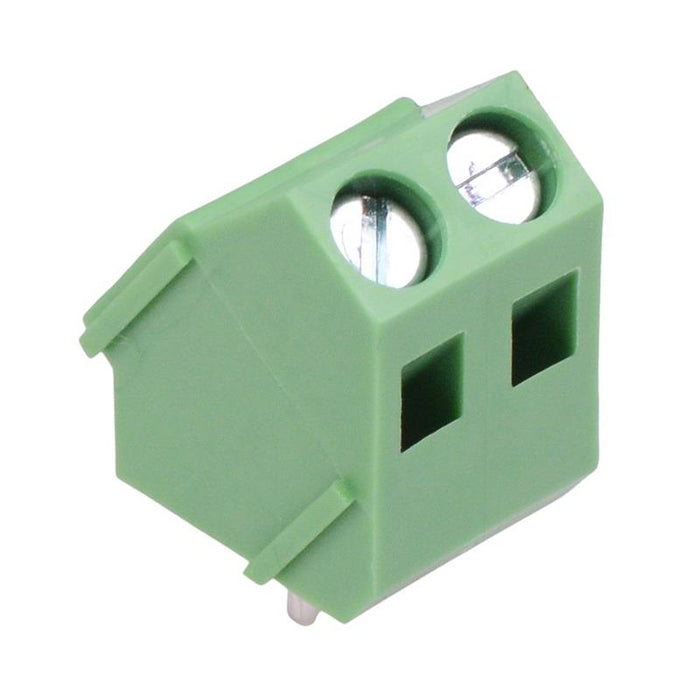

2 pole PCB terminal block by Degson, featuring a 5.0mm pitch and 45° cable entry. The terminal blocks are rated up to 20A, suitable for a wide range of PCB through hole applications.
2 pole 5.00mm pitch 45° cable entry End stackable Material: PA66 Rating: 20A 300V PCB hole diameter: 1.4mm Depth: 13.8mm Wire size: 24-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 20A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 24-12AWG |
