2-Way 5.00mm Pin Strip Pluggable Terminal Block Grey 8A 300V
by PTR HARTMANN
SKU 488474
MPN: AK130/02-5.0-GREY
Back Order Availability:
Availability:
250 in stock, ready to be shipped
Original price
£0.57
-
Original price
£0.57
Original price
£0.57
Inc VAT
£0.57
-
£0.57
Current price
£0.57
Inc VAT

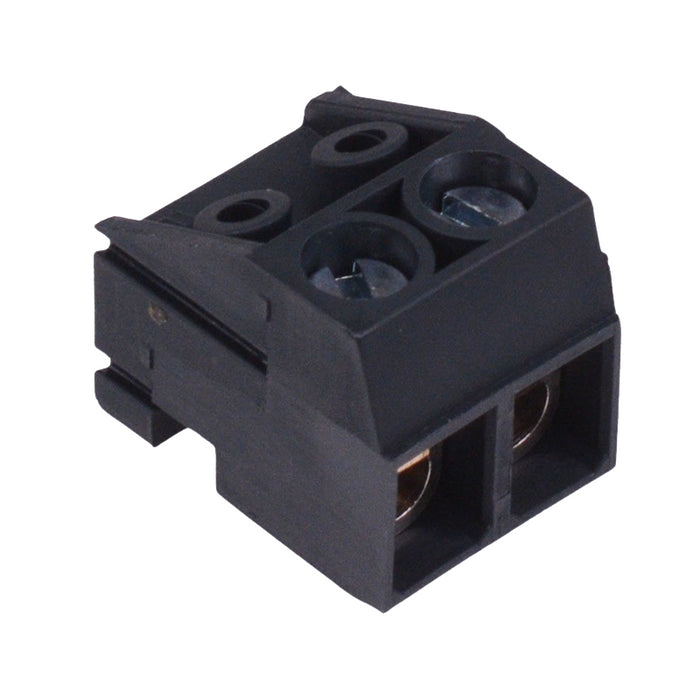

2 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel or vertical wire connection. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
2 pole 5.00mm pitch Connects onto pin strips on circuit boards Parallel or vertical wire connection Horizontal or vertical plugging on pin strip Material: PA66 Rating: 8A 300V Wire size: 22-12AWG
Specification
| Colour | Grey |
| Contact material | Copper Alloy |
| Current rating | 8A |
| Housing material | PA66 |
| Mounting type | Cable Mount |
| Number of ways | 2 |
| Operating temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination method | Screw |
| Voltage rating | 300VAC |
| Wire range | 22-12AWG |
