2-Way 5.00mm Screwless PCB Terminal Block Grey 10A 300V
by PTR HARTMANN
SKU 488185
MPN: AK4101/02KD-5,0-PEBBLE GREY
Back Order Availability: 10 Days
Availability:
351 in stock, ready to be shipped
Original price
£0.34
-
Original price
£0.34
Original price
£0.34
Inc VAT
£0.34
-
£0.34
Current price
£0.34
Inc VAT

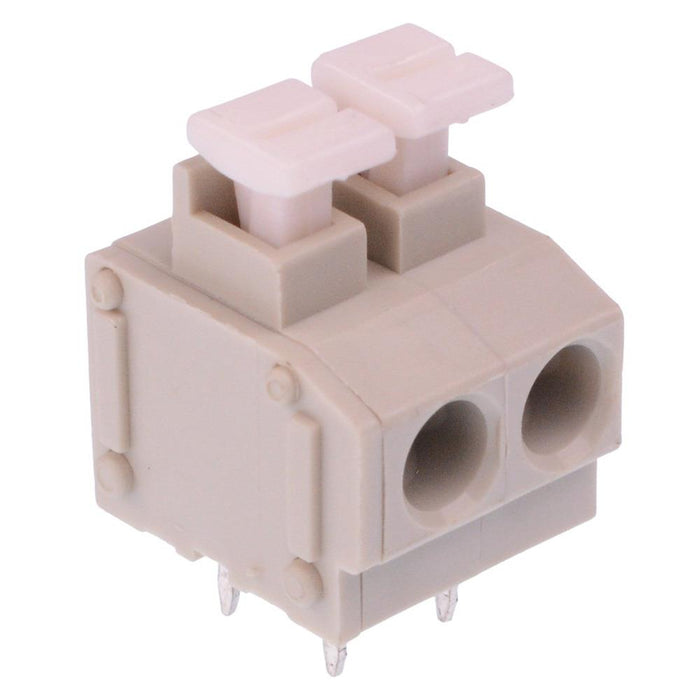

2 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 10A, making them suitable for a wide range of PCB applications.
2 pole 5.00mm pitch Push-in connection Wire entry parallel to the board Material: PA66 Rating: 10A 300V Wire size: 20-14AWG
Specification
| Back order lead time | 10 Days |
| Colour | Grey |
| Contact material | Stainless Steel |
| Current rating | 10A |
| Housing material | PA66 |
| Mounting type | PCB Mount |
| Number of ways | 2 |
| Operating temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination method | Push Clamp |
| Voltage rating | 300VAC |
| Wire range | 20-14AWG |
