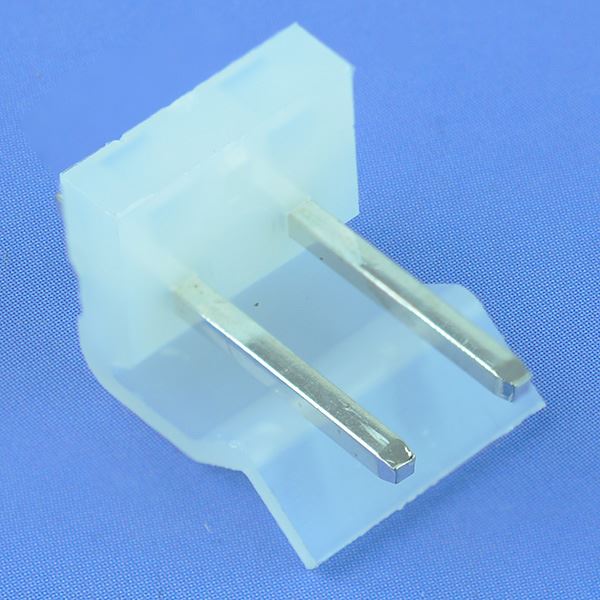

2 Way 5.08mm PCB Male Header

SKU 481130

MPN: 481130

194 in stock
Original price £0.16 - Original price £0.16
Original price
£0.16 Inc VAT
£0.16 - £0.16
Current price £0.16 Inc VAT
Single row 2 way pin header featuring 5.08mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for Molex 5058.

  • 5.08mm pitch
  • Solder termination
  • PA66 housing
  • Rated Current: 5A
  • Rated Voltage: 250V
  • Wire range: 18-24AWG
  • Specification
    Back order lead time 45 Days
    Contact material Tin Plated Brass
    Current rating 5A
    Housing material PA66
    Moq 5
    Mounting type PCB Mount
    Number of ways 2
    Operating temperature -25°C to +85°C
    Pitch 5.08mm
    Termination method Solder
    Voltage rating 250VAC
    Wire range 18-24AWG
