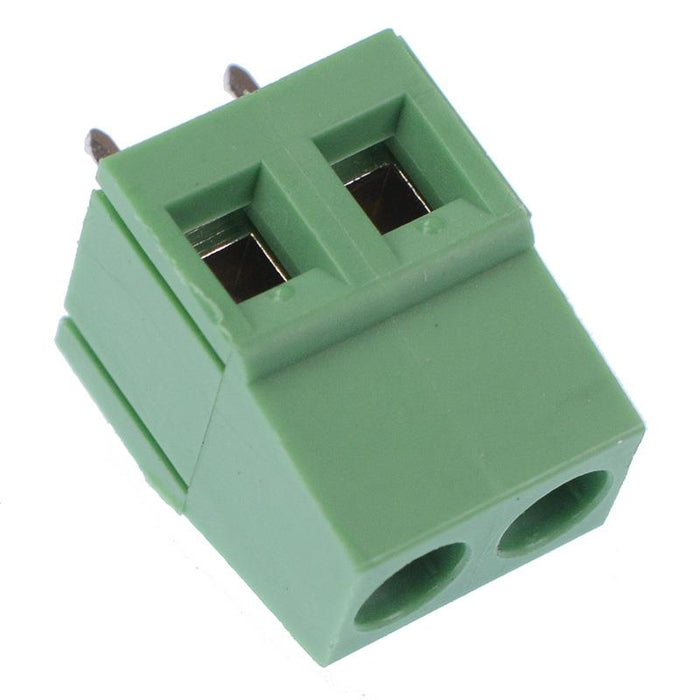

2 Way 5.08mm Rising Clamp Terminal Block 16A
by CamdenBoss
SKU 485498
MPN: CTBP0108/2
Availability:
25 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.82
£0.82
-
£0.82
Current price
£0.82
2 pole PCB interlocking terminal block featuring 5.08mm pitch and 16A 300V rating.
16A current rating 300V voltage rating Screw termination Pin hole diameter: 1.5mm Wire range: 14-22AWG Moulded in green UL94-V0 flame retardant PA66 Dimensions: 10.16 x 14.1 x 10.2mm (length x height x depth)
Specification
| Back Order Lead Time | 5 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 16A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 14-22AWG |
