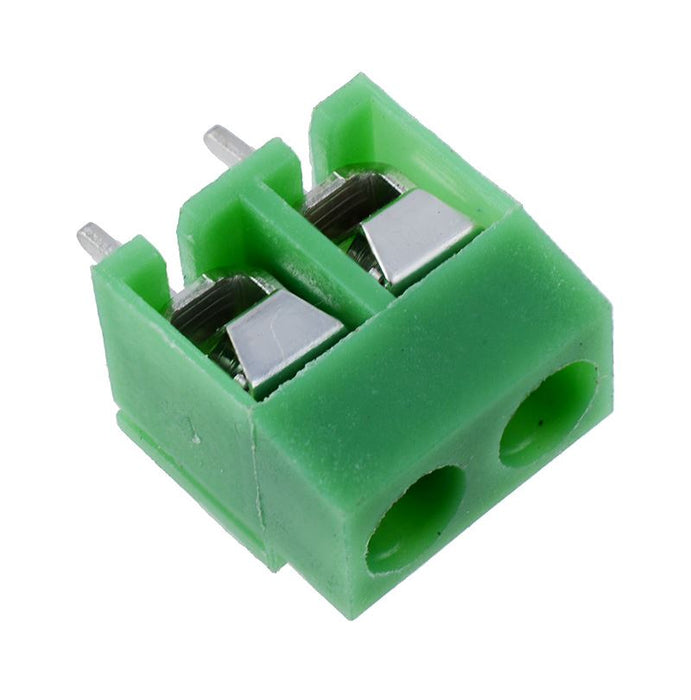

2-Way 5.08mm Terminal Block 10A
SKU 329062
MPN: 329062
Availability:
Out of stock
Sold out
Original price
£0.35
Original price
£0.35
-
Original price
£0.35
Original price
£0.35
Current price
£0.29
£0.29
-
£0.29
Current price
£0.29
PCB interlocking terminal block with 5.08mm pitch and 3 poles.
10A current rating 300V voltage rating Screw termination Wire range: 12-24AWG PA66 UL94V-0 housing
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 18-26AWG |
