2 Way 5.08mm Terminal Block 15A
by Degson
SKU 480801
MPN: DG127-5.08-02P
Availability:
874 in stock
Original price
£0.43
-
Original price
£0.43
Original price
£0.43
£0.43
£0.43
-
£0.43
Current price
£0.43

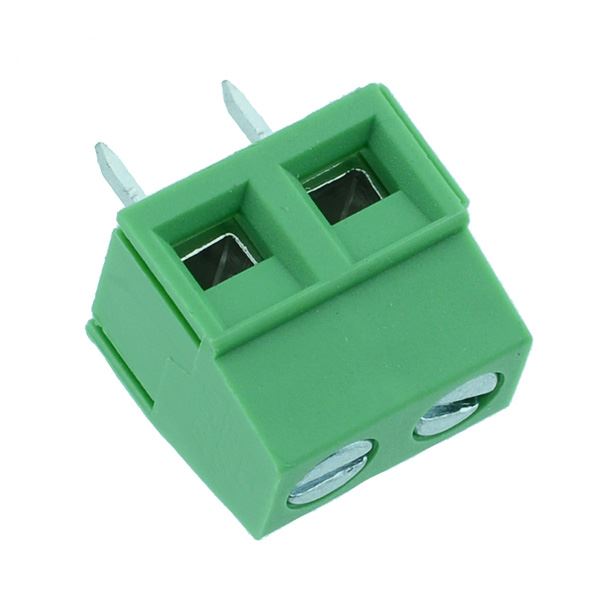

High quality interlocking terminal block featuring a 5.08mm pitch and 2 poles. The terminal block is suitable for 26-14AWG cable and features a 15A current rating.
2 Poles Voltage rating: 300V Current rating: 15A Housing material: PA66, UL94V-0 Slotted screw termination End stackable
Specification
| Back Order Lead Time | 7 |
| Colour | Green |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 250VAC |
| Wire Range | 1.5mm² max |
