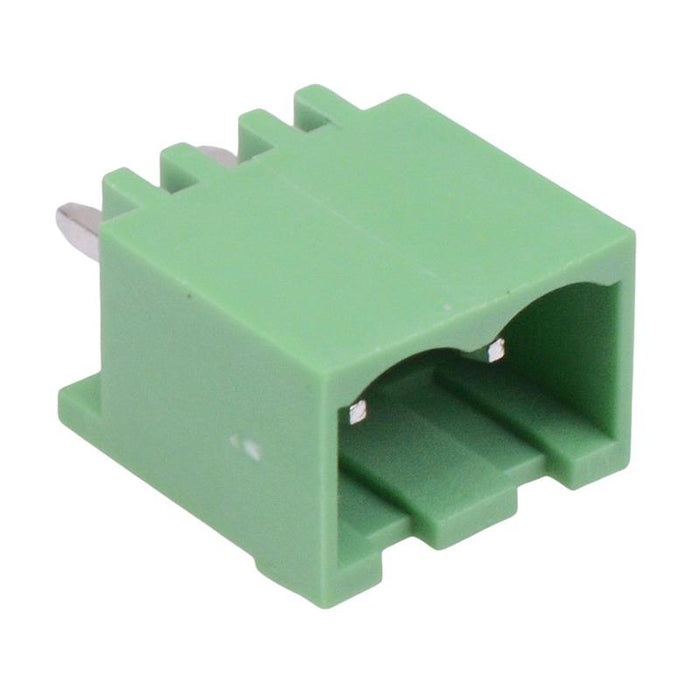

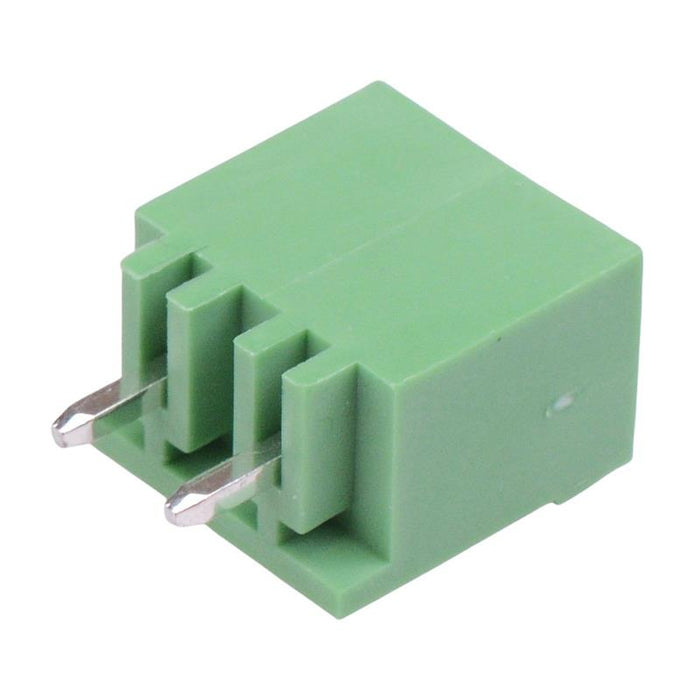

2-Way 5.08mm Vertical PCB Header Closed Ends 15A 300V
by Degson
SKU 488799
MPN: 2EDGVC-5.08-02P14
Availability:
3585 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.18
£0.18
-
£0.18
Current price
£0.18
2 pole PCB header manufactured by Degson, featuring a 5.08mm pitch and vertical orientation. The headers are rated up to 15A, making them suitable for mating with 5.08mm pluggable terminal blocks.
2 pole 5.08mm pitch Vertical orientation Closed ends Material: PA66 PCB hole diameter: 1.5mm Rating: 15A 300V
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
