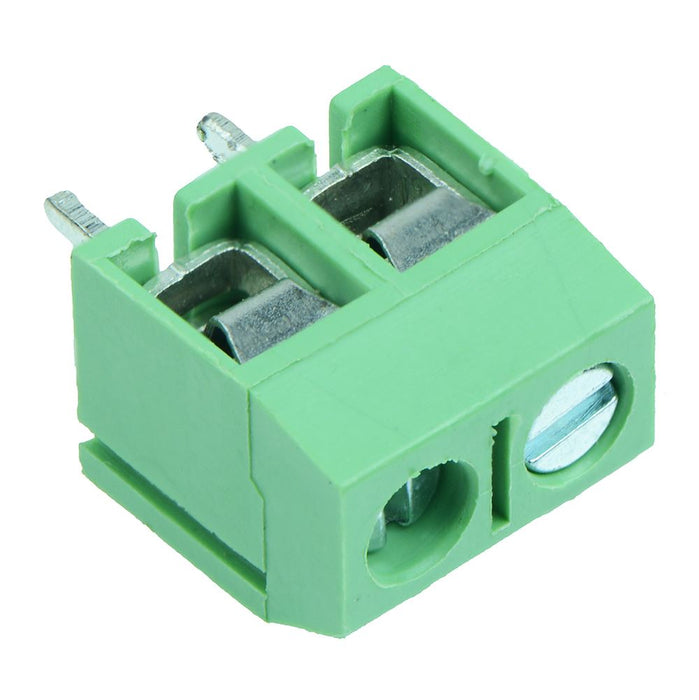

2-Way 5mm Terminal Block 10A
SKU 329069
MPN: 329069
Availability:
930 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
£0.24
-
£0.24
Current price
£0.24
PCB interlocking terminal block with 5.0mm pitch and 2 poles.
10A current rating 250V voltage rating Screw termination Pin hole diameter: 1.3mm Wire range: 14-22AWG
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 250VAC |
| Wire Range | 14-22AWG |
