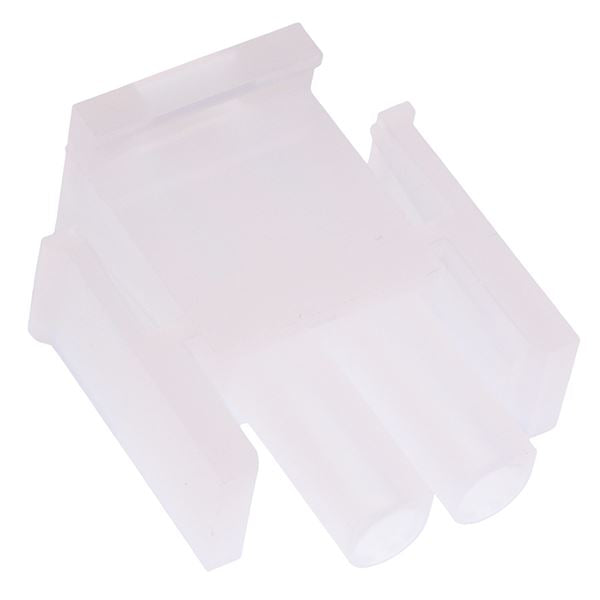

2 Way 6.35mm Male Mate N Lock Connector Housing
SKU 484706
MPN: 484706
Availability:
226 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
£0.20
-
£0.20
Current price
£0.20
Single row 2 way male mate n lock housing featuring 6.35mm pitch suitable for mating with a female housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex MLX connectors.
6.35mm pitch Nylon 66 housing Rated Current: 10A Rated Voltage: 300V Wire range: 14-20AWG
Specification
Back Order Lead Time | 45 Days |
Contact Material | Tin Plated Brass |
Current Rating | 10A |
Housing Material | PA66 |
MOQ | 5 |
Mounting Type | Cable Mount |
Number of Ways | 2 |
Operating Temperature | -25°C to +85°C |
Pitch | 6.35mm |
Termination Method | Crimp |
Voltage Rating | 300VAC |
Wire Range | 20-14AWG |
