2-Way Chassis Speaker Terminal
SKU 356100
MPN: 356100
Availability:
484 in stock
Original price
£0.61
-
Original price
£0.61
Original price
£0.61
Inc VAT
£0.61
-
£0.61
Current price
£0.61
Inc VAT

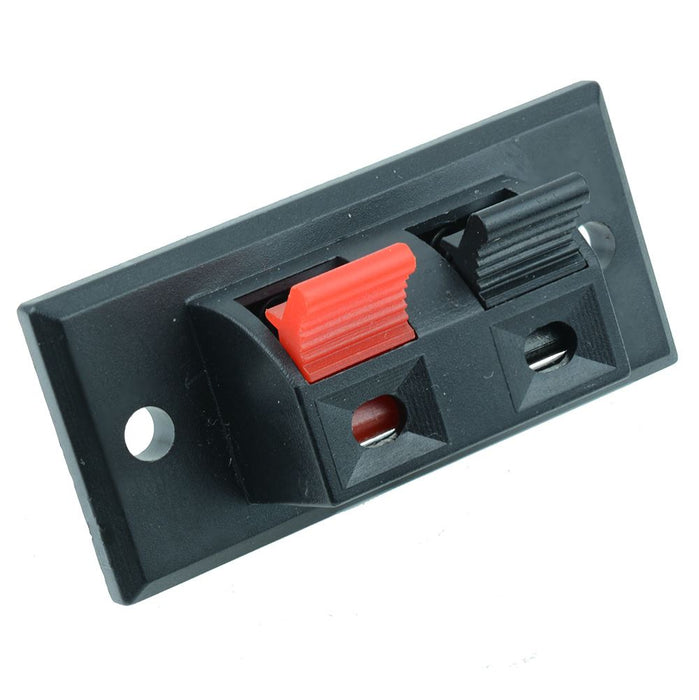

Speaker terminal with 2 poles and solder tags on the rear suitable for chassis mounting. The speaker terminal features sprung red and black terminals to ensure a solid connection.
Mounting holes 35mm apart Dimensions: 44.7 x 21 17.3mm (Length x Height x Width)
Specification
| Back order lead time | 40 Days |
| Contact material | Tin Plated Copper |
| Housing material | ABS |
| Mounting type | Panel |
| Number of poles | 2 |
| Operating temperature | -25°C to +70°C |
| Termination method | Solder |
