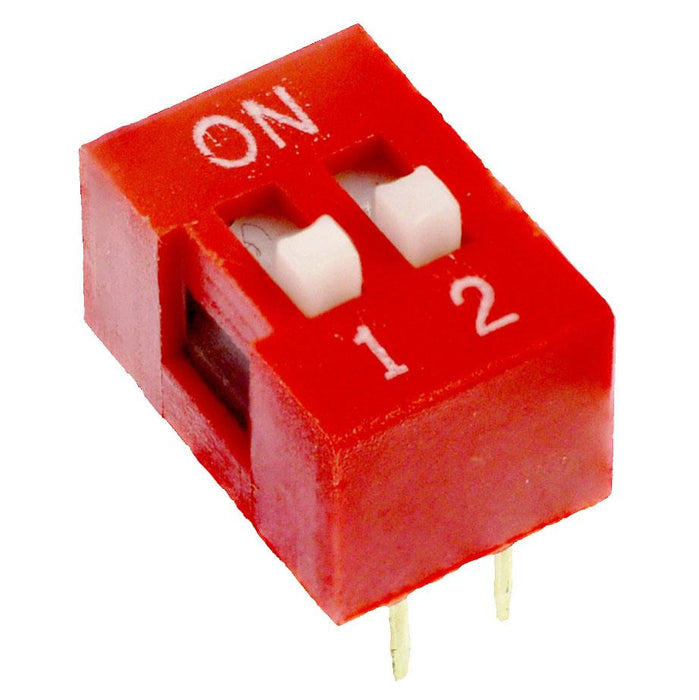

2-Way DIP DIL Red PCB Switch
SKU 124201
MPN: 124201
Availability:
164 in stock
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
Inc VAT
£0.40
-
£0.40
Current price
£0.40
Inc VAT
2-Way DIL switch with 2.54mm pitch and gold plated contacts suitable for a range of applications including computers and communications equipment.
2-Ways Vertical mounting SPST contacts Gold plated contacts 2.54mm pitch On/off clearly marked on the switch 25mA maximum switching current 24VDC maximum switching voltage
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 25mA 24VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Operations |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 2 |
| Operating force | 9.8N max |
| Operating temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
