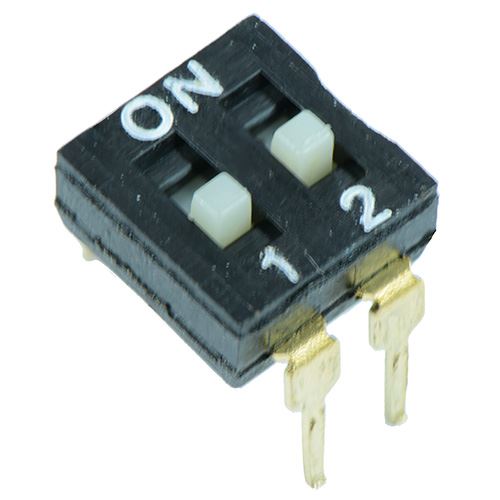

2 Way Low Profile DIL Switch

SKU 550968

MPN: 550968

Availability:
337 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62 Inc VAT
£0.62 - £0.62
Current price £0.62 Inc VAT
Low profile DIL switches manufactured from PPS, featuring 2.54mm pitch and SPST contacts.

  • 2 ways
  • Rating: 25mA 24VDC
  • Housing material: PPS
  • Contact material: gold plated brass
  • Operating force: 8N
  • 7.62mm row pitch
  • 2.54mm lead pitch
  • End stackability
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Colour Black
    Contact configuration SPST
    Contact rating 25mA 24VDC
    Current rating 25mA
    Electrical life 1,000 Cycles
    Material PPS
    Mounting style Through Hole
    Number of positions 2
    Number of ways 2
    Operating force 8N Max
    Operating temperature -25°C to +70°C
    Pitch 2.54mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
