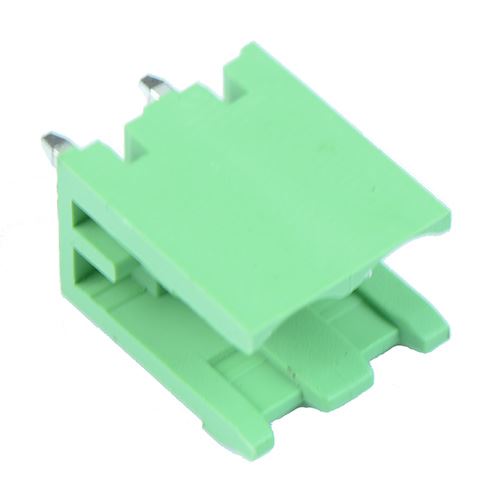

2-Way Plug-In PCB Vertical Open Ends Header 5.08mm
SKU 550960
MPN: 550960
Availability:
598 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
£0.12
-
£0.12
Current price
£0.12
Open end top entry vertical headers manufactured from PA66, suitable for PCB mounting.
2 poles 5.08mm pitch 15A current rating 300V voltage rating 2.5mm² maximum wire size Solder termination PCB mounting Housing material: PA66 UL 94V-0 Contact material: tin plated brass
Specification
| Back Order Lead Time | 150 |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 10 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Solder |
| Voltage Rating | 300VAC |
