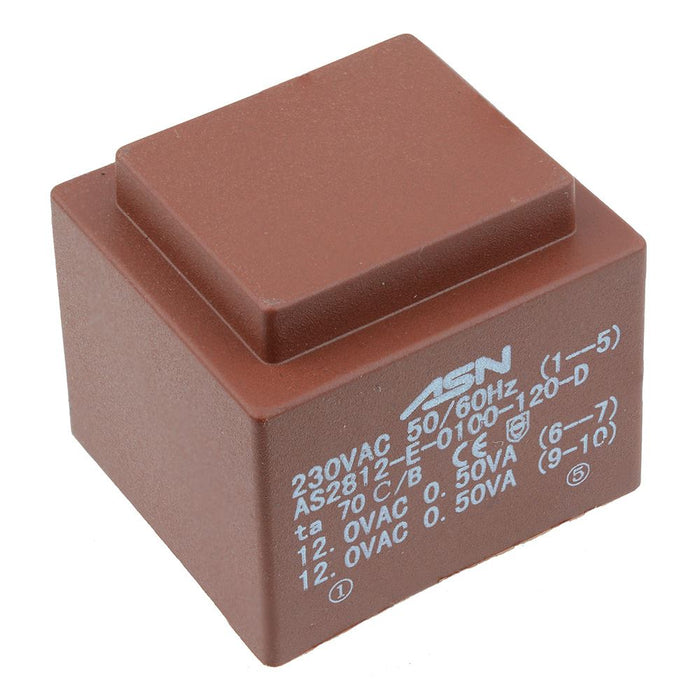

2 x 12V 1VA 230V Encapsulated PCB Transformer

2 x 12V 1VA 230V Encapsulated PCB Transformer

by ASN
SKU 451015

MPN: AS2812-E-0100-120-D

Availability:
29 in stock
£1.43 - £1.43
£1.43
£1.43
£1.43 - £1.43
£1.43
PCB encapsulated transformer with a 230V primary voltage and secondary 2x0-12V voltage.

  • Power: 1VA
  • Dual secondary winding
  • Vacuum filled casting
  • Split bobbin design welding
  • Dielectric strength: 4500Vrms
  • Approved by EN61558
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 150
    Dielectric Strength 4500Vrms
    Maximum Ambient Temperature 70°C
    MOQ 1
    Output Current 0.04A
    Power 1VA
    Primary Voltage 230V
    Secondary Voltage 2 x 12V
    Weight 70g
