2001-1401 WAGO Grey 4-Way DIN Rail Mount Terminal Block 2.5mm² 17.5A
by Wago
SKU 489366
MPN: 2001-1401
Availability:
86 in stock
Original price
£1.18
-
Original price
£1.18
Original price
£1.18
£1.18
-
£1.18
Current price
£1.18

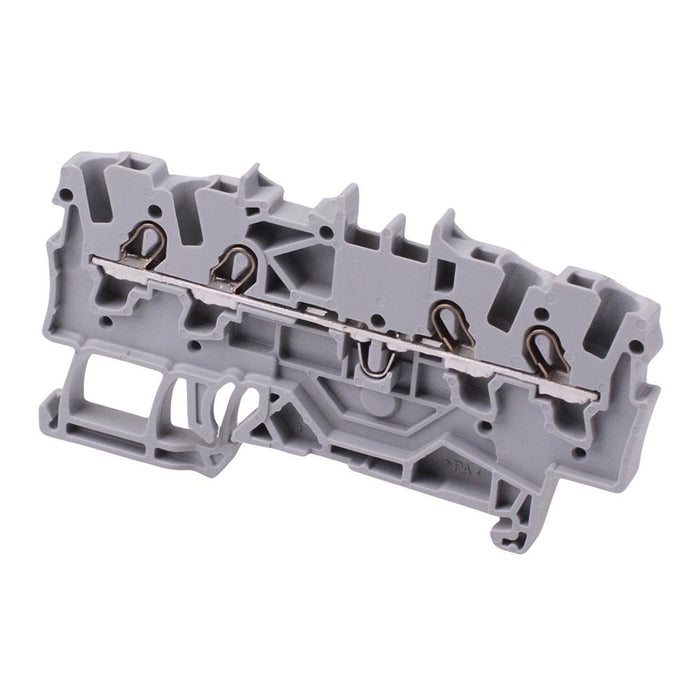

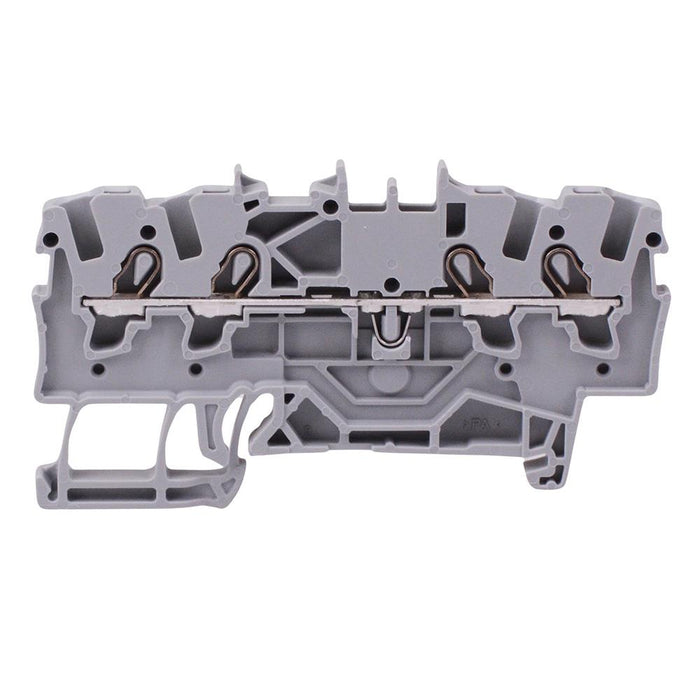

The 2001-1401 is a grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 2.5mm² cable and is suitable for mounting to DIN rail 35.
Push-In CAGE CLAMP® technology 35mm DIN rail mounted Front entry wiring Cable size: 0.25mm² - 2.5mm² / 22AWG - 14AWG Cable strip length: 9mm - 11mm Rated surge voltage: 8kV Nominal voltage: 800V Current rating: 17.5A Width: 4.2mm Height: 69.9mm Depth from upper-edge of DIN rail: 32.9mm Compatible end plate: 2002-1491
Specification
| Back Order Lead Time | 5 Days |
| Colour | Grey |
| Contact Material | Copper |
| Current Rating | 17.5A |
| Housing Material | PA66 |
| Mounting Type | DIN Rail Mount |
| Number of Ways | 4 |
| Operating Temperature | -60°C to +105°C |
| Termination Method | Push-In |
| Wire Range | 0.25-2.5mm² |
