2002-2231 WAGO Grey 4-Way DIN Rail Mount Double Deck Terminal Block 4mm² 24A
by Wago
SKU 489381
MPN: 2002-2231
Availability:
50 in stock
Original price
£2.39
-
Original price
£2.39
Original price
£2.39
£2.39
-
£2.39
Current price
£2.39

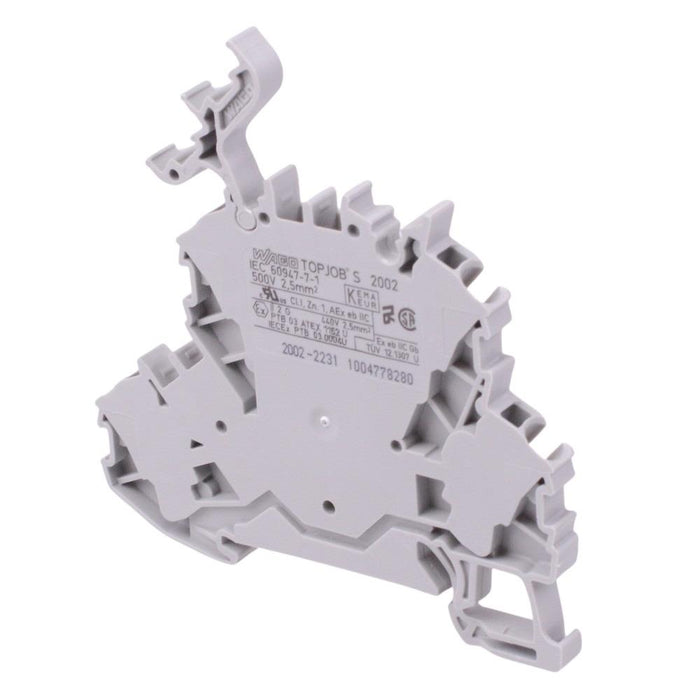

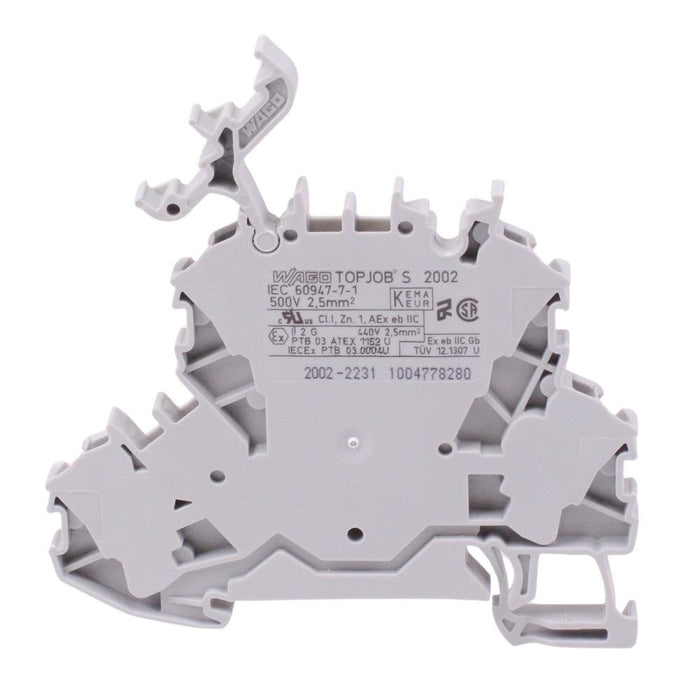

The 2002-2231 is a double deck grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 4mm² cable and is suitable for mounting to DIN rail 35.
Push-In CAGE CLAMP® technology 35mm DIN rail mounted Front entry wiring Cable size: 0.25mm² - 4mm² / 22AWG - 12AWG Cable strip length: 10mm - 12mm Rated surge voltage: 6kV Nominal voltage: 500V Current rating: 24A Width: 5.2mm Height: 69.7mm Depth from upper-edge of DIN rail: 61.8mm Compatible end plate: 2002-2291
Specification
| Back Order Lead Time | 5 Days |
| Colour | Grey |
| Contact Material | Copper |
| Current Rating | 24A |
| Housing Material | PA66 |
| Mounting Type | DIN Rail Mount |
| Number of Ways | 4 |
| Operating Temperature | -60°C to +105°C |
| Termination Method | Push-In |
| Wire Range | 0.25-4mm² |
