2002-6401 WAGO Grey 4-Way DIN Rail Mount Terminal Block 4mm² 24A
by Wago
SKU 489417
MPN: 2002-6401
Availability:
100 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
Inc VAT
£1.26
-
£1.26
Current price
£1.26
Inc VAT

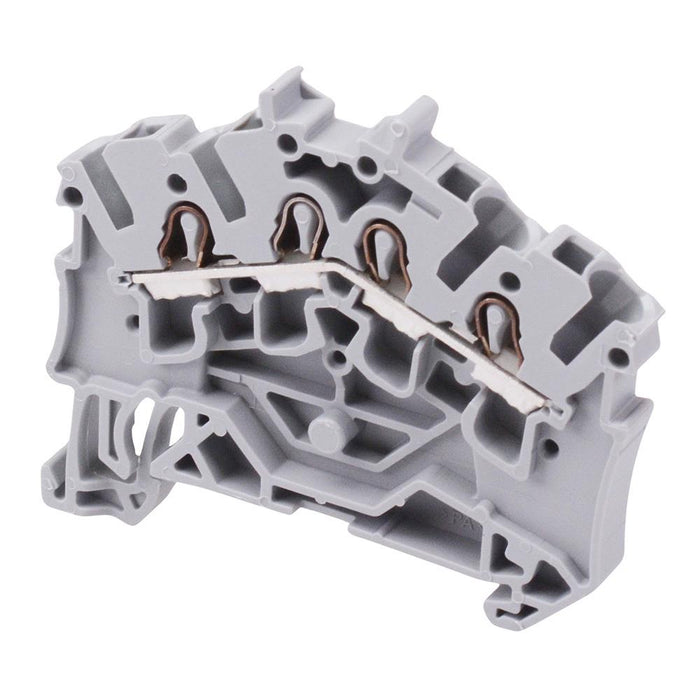

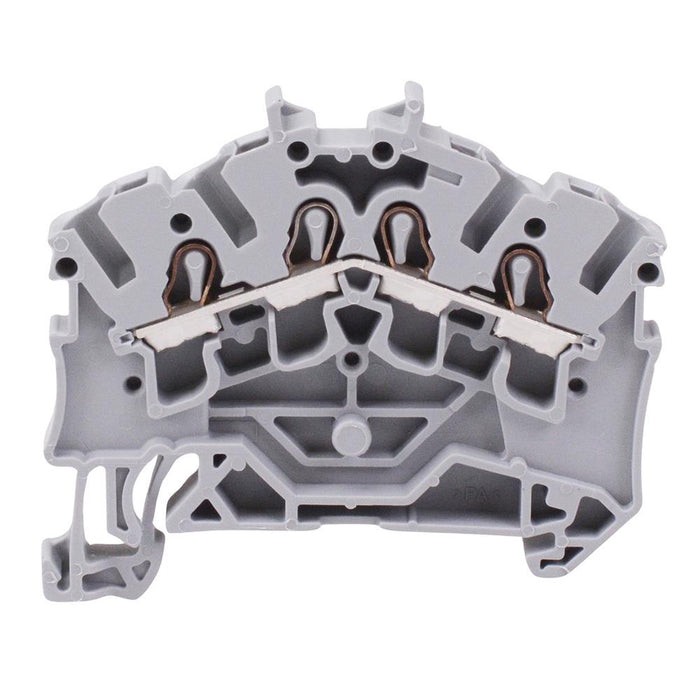

The 2002-6401 is a grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 4mm² cable and is suitable for mounting to DIN rail 35.
Push-In CAGE CLAMP® technology 35mm DIN rail mounted Front entry wiring, angled Cable size: 0.25mm² - 4mm² / 22AWG - 12AWG Cable strip length: 10mm - 12mm Rated surge voltage: 8kV Nominal voltage: 800V Current rating: 24A Width: 5.2mm Height: 52.6mm Depth from upper-edge of DIN rail: 38.9mm Compatible end plate: 2002-6391
Specification
| Back order lead time | 5 Days |
| Colour | Green |
| Contact material | Copper |
| Current rating | 24A |
| Housing material | PA66 |
| Mounting type | DIN Rail Mount |
| Number of ways | 4 |
| Operating temperature | -60°C to +105°C |
| Termination method | Push-In |
| Wire range | 0.25-4mm² |
