200K Linear 16mm Splined Potentiometer

SKU 551764

MPN: 551764

Availability:
239 in stock
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT

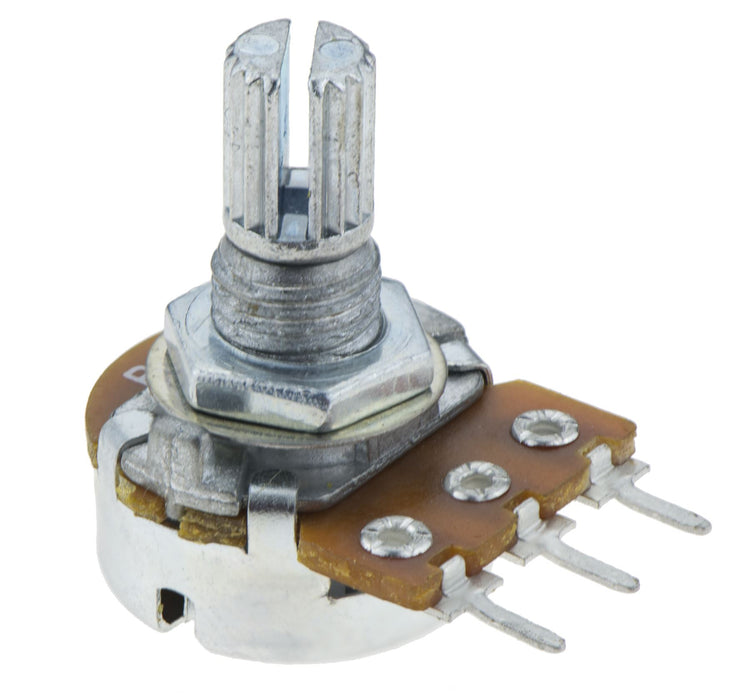

200k linear potentiometer with a 16mm diameter base and splined 6mm shaft suitable for PCB mounting.

  • 200K linear
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Specification
    Back order lead time 45 Days
    Dimensions 17mm Diameter
    Maximum voltage 200V
    Mounting hole diameter 7mm
    Mounting type Panel Mount
    Operating temperature -25°C to +70°C
    Pitch 5mm
    Power rating 0.125W
    Resistance 200KΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
