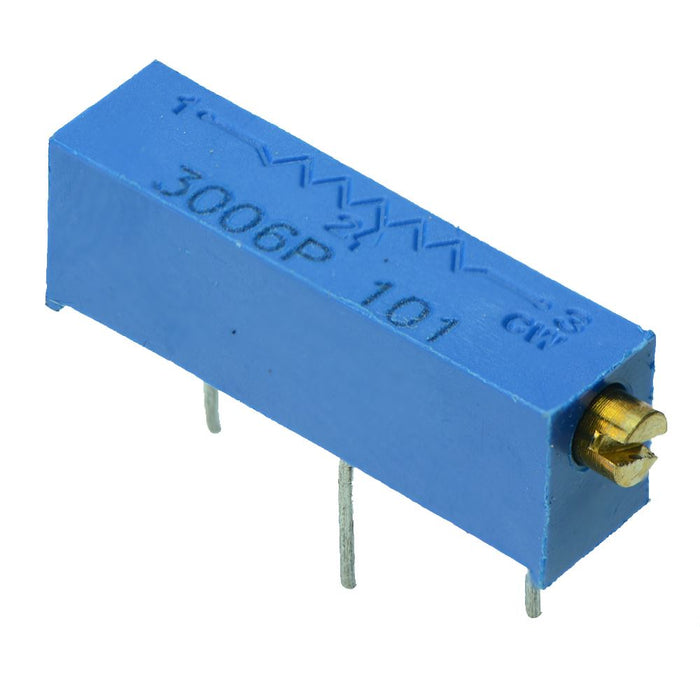

200r 3006 19mm Multiturn Cermet Potentiometer 10% Tolerance
SKU 550334
MPN: 550334
Availability:
323 in stock
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
£0.40
£0.40
-
£0.40
Current price
£0.40
3006 type multi turn cermet trimmer with side adjustment, suitable for through hole mounting.
Resistance 200r Ohm 10% Tolerance Rating 0.75W Dimensions: 19.3 x 4.9 x 6.5mm (L x W x H) Sealed construction
Specification
| Back Order Lead Time | 30 Days |
| Dimensions | 19.3 x 4.9 x 6.5mm |
| Maximum Voltage | 315V |
| MOQ | 5 |
| Mounting Type | PCB |
| Operating Temperature | -55°C to +125°C |
| Pitch | 2.54mm |
| Power Rating | 0.75W |
| Resistance | 200Ω |
| Termination Type | Pin |
| Tolerance | ±10% |
