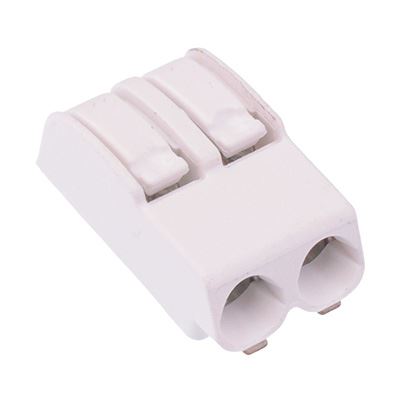

2-Way Female PCB Clamp Terminal Block 9A Wago 2060-452/998-404

The 2060-452/998-404 is a low profile 2 pole terminal block suitable for both manual and automated wiring systems. The wires are secured by the sprung cage clamp mechanism that accommodates both single and multi-strand cables fitted with ferrules. The terminal blocks can be placed side-by-side to produce multiple way connectors whilst maintaining the same pitch, this makes them suitable for a wide range of PCB applications.

2 way

4mm pin spacing

Height: 4.5mm

Current rating: 9A

Voltage rating: 600V

Wire size: 24-18AWG

Termination: push-in cage clamp
