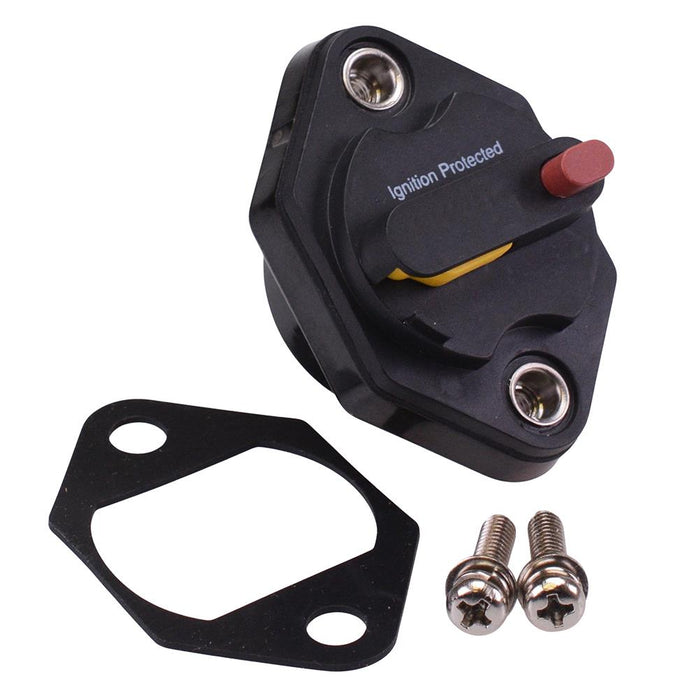

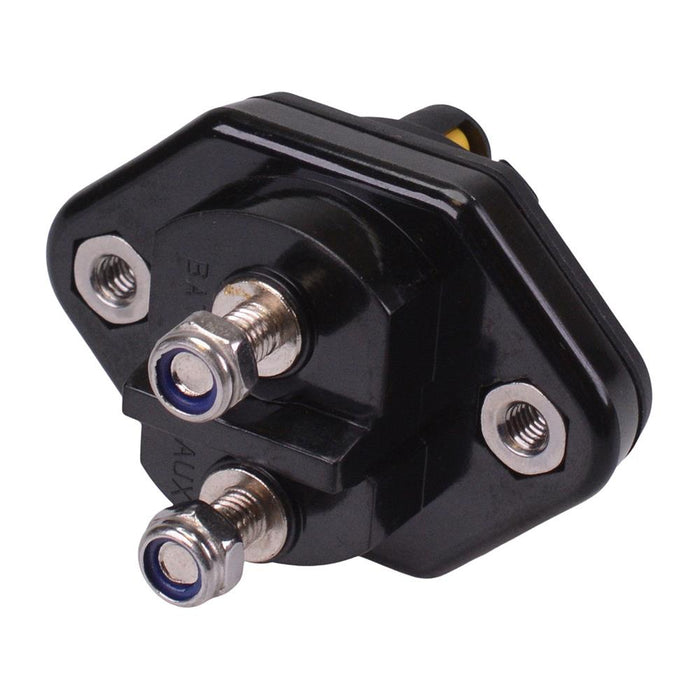

20A Mini Panel Mount Manual Reset On-Off Circuit Breaker IP66
SKU 492173
MPN: 21-8P-20-A-K3
Availability:
Out of stock
Sold out
Original price
£9.14
-
Original price
£9.14
Original price
£9.14
£9.60
£9.60
-
£9.60
Current price
£9.60
20A miniature panel mount circuit breaker featuring ignition protection and manual reset with On/Off switch. The circuit breaker features a 32VDC voltage rating and is IP66 protected, suitable for various automotive and marine applications.
Ignition protected Manual reset with On/Off switch Supplied with gasket Voltage rating: 32VDC IP66 protection level Stud size: #10-32 Mounting holes: 8/32*5.5 Mounting hole pitch: 40.0mm Dimensions: 55.8 x 37.0 x 45.0mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 20A |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -40°C to +85°C |
| Voltage Rating | 32VDC |
