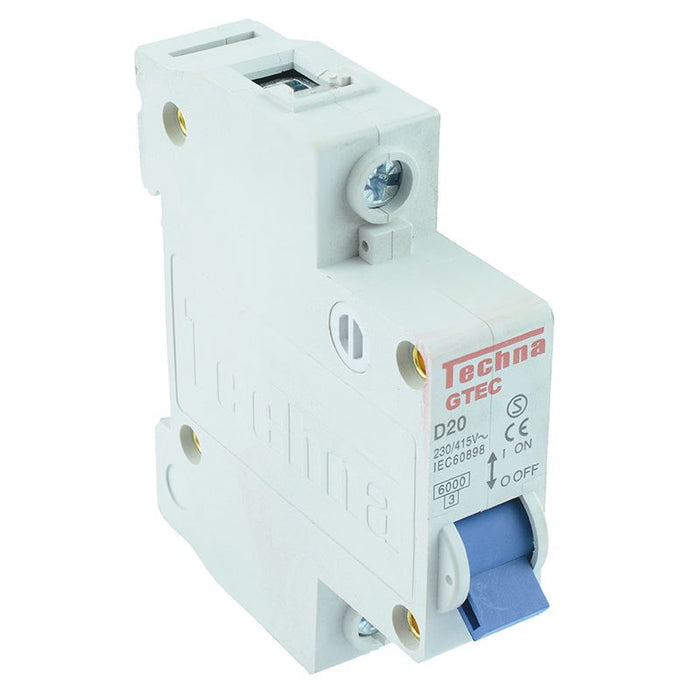

20A Single Pole Miniature Circuit Breaker Type B 6kA
by Techna
SKU 480996
MPN: Gtec1B20
Availability:
7 in stock
Original price
£4.24
-
Original price
£4.24
Original price
£4.24
£4.24
-
£4.24
Current price
£4.24
20A single pole miniature circuit breaker from the Techna GTEC range featuring a B trip curve. The breaker provides excellent performance at a low price for customers requiring 6kA protection.
Rating: 20A Breaking capacity: 6kA Rated voltage: 230/400Vac Electromagnetic must hold (A) > 0.1s: 3 x In Electromagnetic must trip (A) < 0.1s: 5 x In Cable size: 1mm² to 25mm² Manufacturers part number: GTEC1B20
Specification
| Back Order Lead Time | 5 Days |
| Breaking Capacity | 6kA |
| Current Rating | 20A |
| Mounting Style | DIN Rail |
| Operating Temperature | -25°C to +60°C |
| Trip Curve | B |
| Voltage Rating | 230/400VAC |
