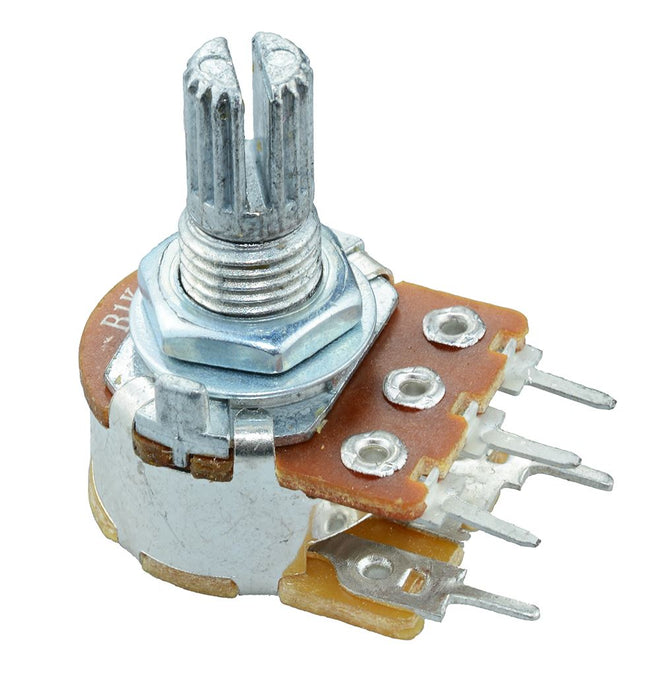

20K Linear 16mm Potentiometer with Switch
SKU 133033
MPN: 133033
Availability:
269 in stock
Original price
$1.40
-
Original price
$1.40
Original price
$1.40
$1.40
$1.40
-
$1.40
Current price
$1.40
16mm potentiometers with a splined 6mm shaft suitable for PCB mounting.
20K linear Mono with switch Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 150 |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 200V |
| MOQ | 1 |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 20KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
