20mm Rotary Encoder with Switch 6mm D Shaft
SKU 482027
MPN: 483364
Back Order Availability: 30 Days
Availability:
2035 in stock, ready to be shipped
Original price
£1.11
-
Original price
£1.11
Original price
£1.11
Inc VAT
£1.11
-
£1.11
Current price
£1.11
Inc VAT

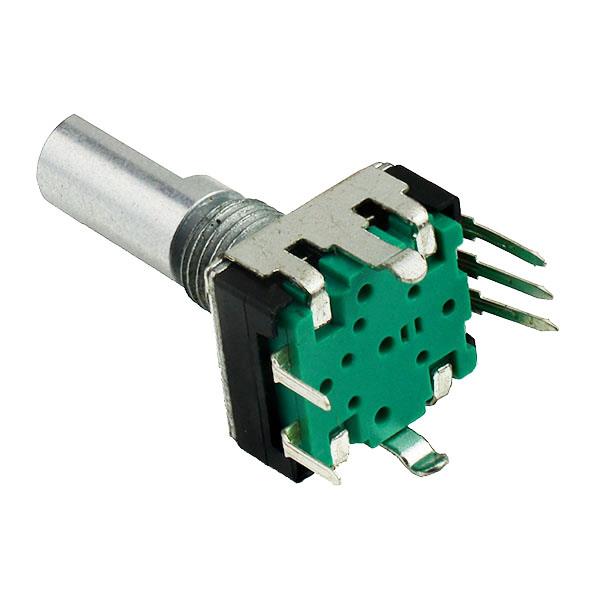

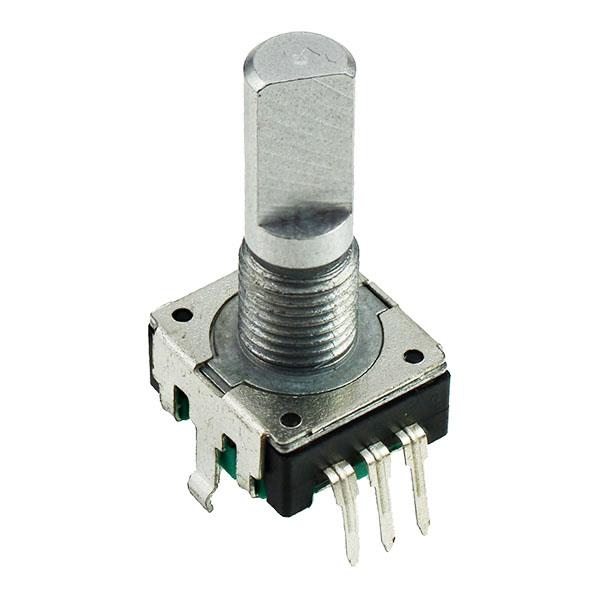

Switched rotary encoder featuring 24 detents and 360° rotation. The encoder features a D shaft and is used as adjustment controls in radios, TVs, Arduino, Raspberry Pi etc.
20mm actuator length 24 detents Top clickable SPST-NO switch Full 360° rotation 6mm diameter D shaft Rated power: 5VDC 5mA Dimensions: 14 x 13.2 x 29mm (Length x Width x Height)
Specification
| Back order lead time | 30 Days |
| Mounting hole diameter | 7mm |
| Mounting type | Through Hole |
| Operating temperature | -30°C to +85°C |
| Power rating | 5VDC 5mA |
| Shaft diameter | 6mm |
| Termination type | Solder |
| Total rotation | 360° |
