21146NLD APEM On-On Low Profile PCB Toggle Switch DPDT 100mA 30VDC
by APEM
SKU 487844
MPN: 21146NLD
Availability:
18 in stock
Original price
£7.95
-
Original price
£7.95
Original price
£7.95
£7.95
£7.95
-
£7.95
Current price
£7.95

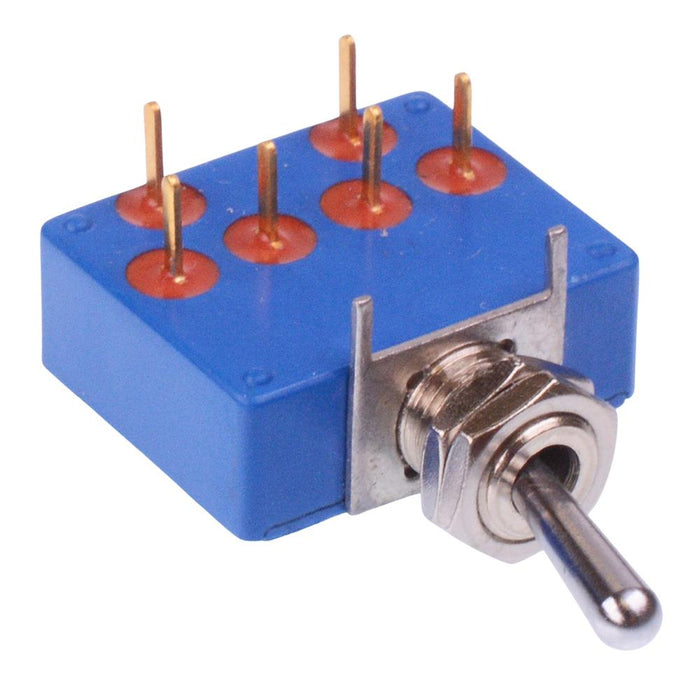

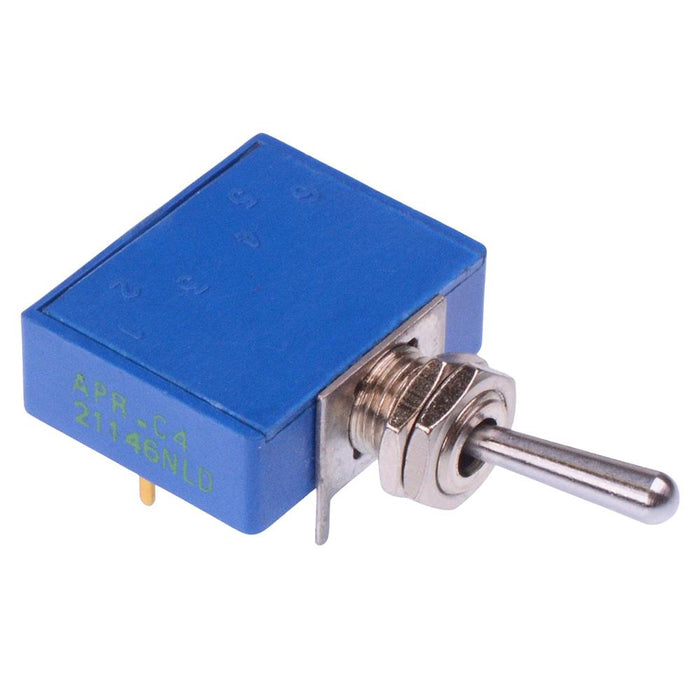

The 21146NLD is a low profile toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.
DPDT contacts On-On operation 6.35mm threaded bushing 6.5mm panel cut-out Gold plated brass contacts Rating: 0.1A 30VDC Epoxy sealed terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Product Series | 21000N |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
