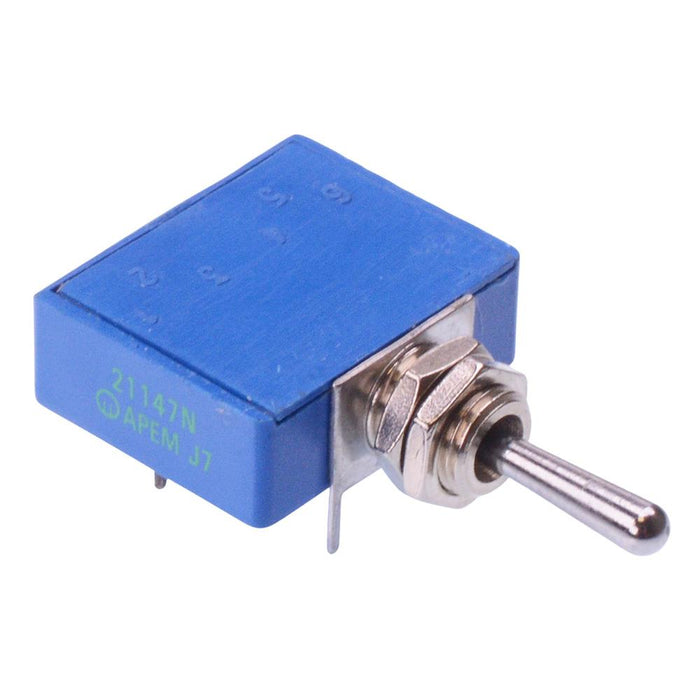

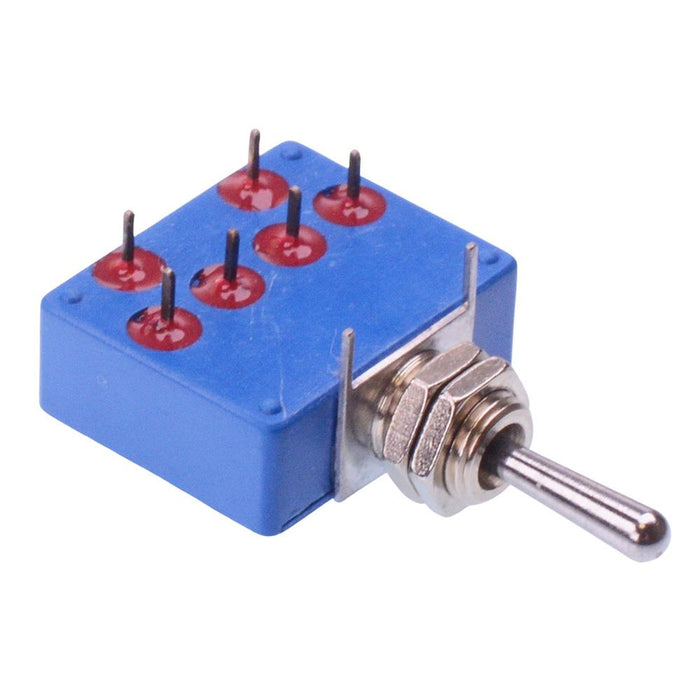

21147NA APEM (On)-Off-(On) Momentary Low Profile PCB Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487807
MPN: 21147NA
Availability:
48 in stock
Original price
£3.93
-
Original price
£3.93
Original price
£3.93
£3.93
-
£3.93
Current price
£3.93
The 21146NLD is a low profile momentary toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.
DPDT contacts (On)-Off-(On) momentary operation 6.35mm threaded bushing 6.5mm panel cut-out Silver contacts Rating: 4A 30VDC Epoxy sealed terminals
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 20,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Product Series | 21000N |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
