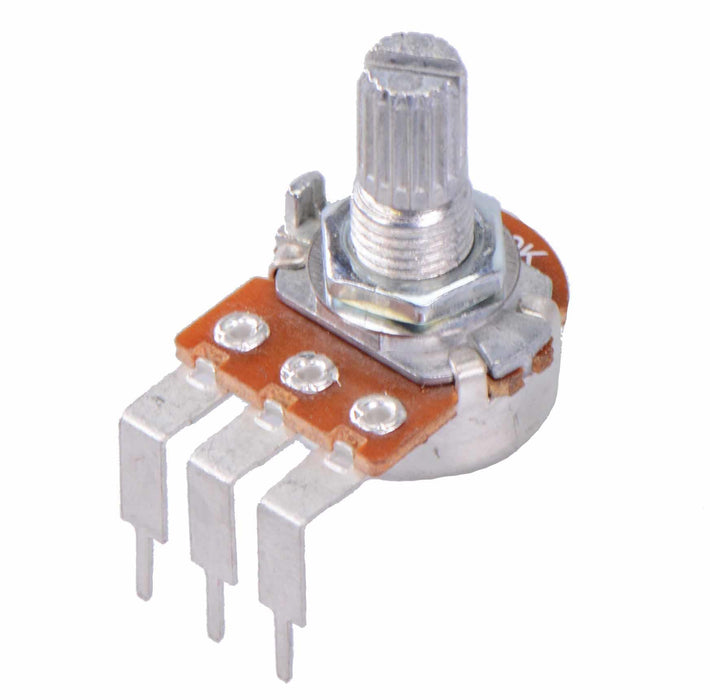

220K Logarithmic 16mm Right Angle Splined Potentiometer
SKU 482489
MPN: 482489
Availability:
76 in stock
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
220K logarithmic carbon track 16mm potentiometer featuring a splined 6mm shaft suitable for horizontal PCB mounting.
Logarithmic taper Standard 16mm metal body Right angle PCB contacts 20% tolerance Panel cut-out: 7mm 5mm terminal pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | PCB |
| Operating Temperature | -10°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.06W |
| Resistance | 220KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
