220R Arcol 10W Aluminium Clad Resistor HS10
by Arcol
SKU 399035
MPN: HS10 220R J
Availability:
127 in stock
Original price
£1.82
-
Original price
£1.82
Original price
£1.82
£1.82
£1.82
-
£1.82
Current price
£1.82

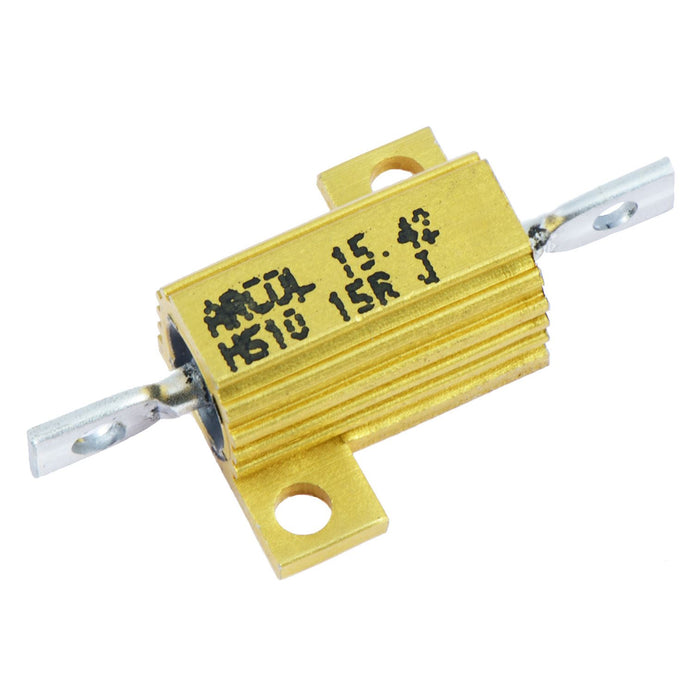

Arcol 10W aluminium clad resistors suitable for a wide range of applications where a high power dissipation is required. The resistors have a small package and are designed for direct heatsink mounting.
High power to volume Wound to maximise high pulse capability 5% tolerance Solder terminations Features 2 mounting holes Arcol HS series
Specification
| Back Order Lead Time | 20 |
| Dimensions | 30.0 x 16.5 x 8.8mm (Length x Width x Height) |
| Heatsink Area | 415cm² |
| Limiting Element Voltage | 160V |
| MOQ | 1 |
| Operating Temperature | -55°C to +200°C |
| Packaging | Bulk |
| Power Rating | 10W |
| Resistance | 220Ω |
| Temperature Coefficient | ±100ppm/°C |
| Termination | Solder Lug |
| Tolerance | ±5% |
