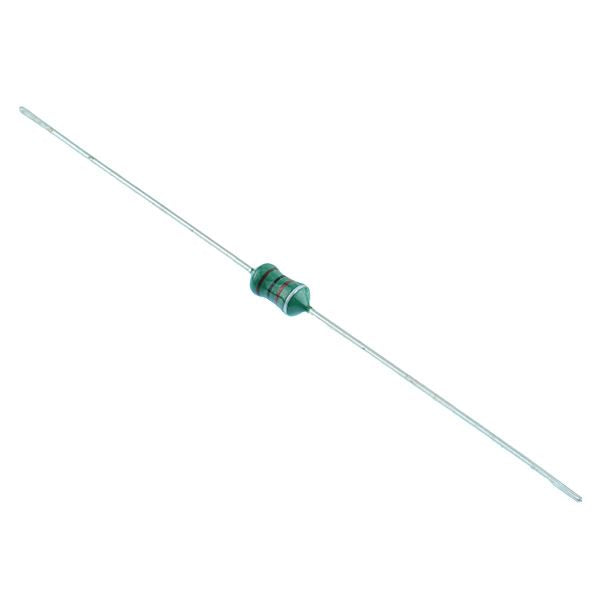

220uH Axial Leaded Inductor
SKU 480023
MPN: 480023
Availability:
497 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
-
£0.16
Current price
£0.16
220uH axial leaded inductor featuring an epoxy resin coating providing high reliability, suitable for general applications including decoupling, RF blocking and suppression.
Inductance: 220uH DC current max: 130mA DC resistance: 5.7Ω Body dimensions: 3 x 8mm (Diameter x Length) Lead dimensions: 0.55 x 27mm (Diameter x Length)
Specification
| Back Order Lead Time | 5 Days |
| Body Dimensions | 8.0 x 3.0mm |
| DC Current | 130mA |
| DC Resistance | 5.7Ω |
| MOQ | 10 |
| Q Min | 75 |
| SRF | 4.0MHz |
| Tolerance | ±10% |
