221-2411 WAGO Inline Lever Splicing Connectors 32A 450V
by Wago
SKU 489308
MPN: 221-2411
Availability:
295 in stock
Original price
£0.62
-
Original price
£0.62
Original price
£0.62
Inc VAT
£0.62
-
£0.62
Current price
£0.62
Inc VAT

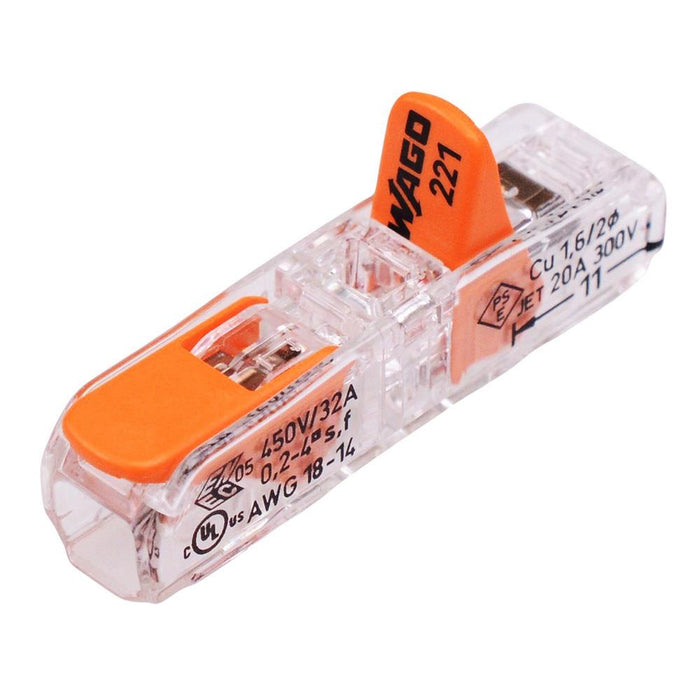

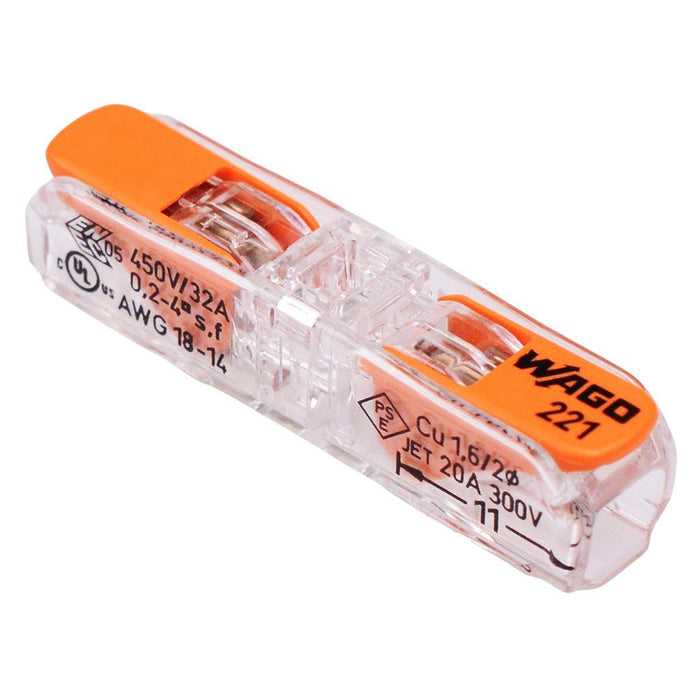

The 221-2411 is an inline connector manufactured by Wago featuring spring levers, suitable for use with solid and stranded wires. The connectors feature a slim design which saves space in tight areas, and no tools are required thanks to the lever technology. These connectors can be combined with a mounting carrier for fixed and multi-pole wiring.
Voltage rating: 450V Current rating: 32A Solid conductor: 20-14AWG Stranded conductor: 18-14AWG Strip length: 11mm CCA, CQC, UL, ENEC approved
Specification
| Back order lead time | 5 Days |
| Colour | Orange |
| Contact material | Copper |
| Current rating | 32A |
| Housing material | PC |
| Mounting type | Cable Mount |
| Number of ways | 2 |
| Operating temperature | 85°C Maximum |
| Termination method | Spring Lever |
| Voltage rating | 450V |
| Wire range | 14-20AWG |
