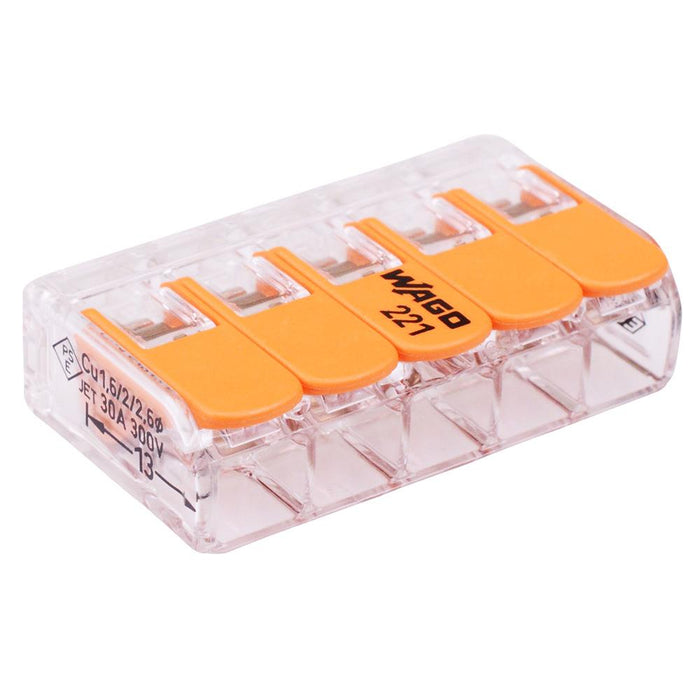

221-615 WAGO 5-Way Compact Lever Connector 6mm² 41A

by Wago
SKU 489338

MPN: 221-615

149 in stock
Original price £1.49 - Original price £1.49
Original price
£1.49 Inc VAT
£1.49 - £1.49
Current price £1.49 Inc VAT
The 221-615 is a 5 conductor lever operated connector for electrical installations allowing solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes: This is not just made possible by their compact design, which is 40% smaller than the well-established 222 Series, but also by their transparent housing, easier handling and two test ports.

The transparent housing allows you to clearly see see if the wires are connected properly and stripped to the correct length. Furthermore, two easily accessible test ports, one in the wire entry direction and one opposite this, provide easy test conditions, even when installed. WAGO's new 221 Series splicing connectors are also easier to use: The operating levers can now be opened and closed using noticeably less force. Lateral hollowed-out grips provide a firm hold on the 221 Series connectors in any situation.

  • Two test slots
  • Wire size: 0.5 to 6mm² (20-10AWG)
  • Voltage rating: 450V
  • Current rating: 41A
  • Strip length: 12-14mm
  • Compatible mounting carrier: 221-510
  • Specification
    Back order lead time 5 Days
    Colour Orange
    Contact material Copper
    Current rating 41A
    Housing material PC
    Mounting type Cable Mount
    Number of ways 5
    Operating temperature 85°C Maximum
    Termination method Spring Lever
    Voltage rating 450V
    Wire range 10-20AWG
