22K 16mm Linear Splined Potentiometer D Shaft
SKU 486678
MPN: 486678
Availability:
18 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
Inc VAT
£0.55
-
£0.55
Current price
£0.55
Inc VAT

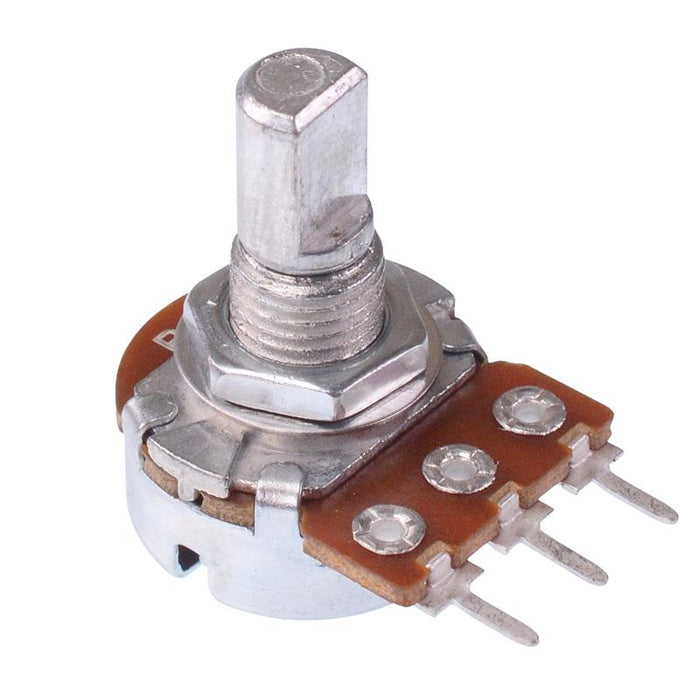

22K linear 16mm potentiometer featuring a 6mm D shaft and pin terminals, suitable for PCB mounting.
22K linear 6mm diameter D shaft Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length Power: 125mW
Specification
| Back order lead time | 5 Days |
| Maximum voltage | 200V |
| Mounting hole diameter | 10mm |
| Mounting type | Panel Mount |
| Operating temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power rating | 0.125W |
| Resistance | 22KΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Pin |
| Tolerance | ±20% |
| Total rotation | 300° |
