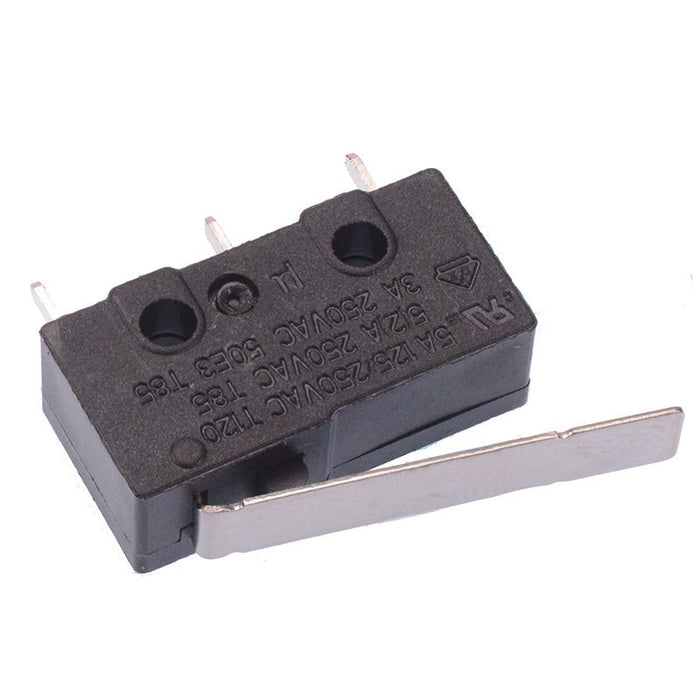

22mm Lever PCB V4 Miniature Microswitch SPDT 5A
SKU 483505
MPN: 483505
Availability:
539 in stock
Original price
£0.64
-
Original price
£0.64
Original price
£0.64
£0.64
£0.64
-
£0.64
Current price
£0.64
Miniature microswitch featuring a 22mm lever actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and PCB terminals making them useful for a wide range applications.
22mm lever Rating: 5A 250VAC NO / NC contacts PCB terminals Terminal pitch: 8.7, 7.3mm Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 4.5N Max |
| Operating Temperature | -25°C to +85°C |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
