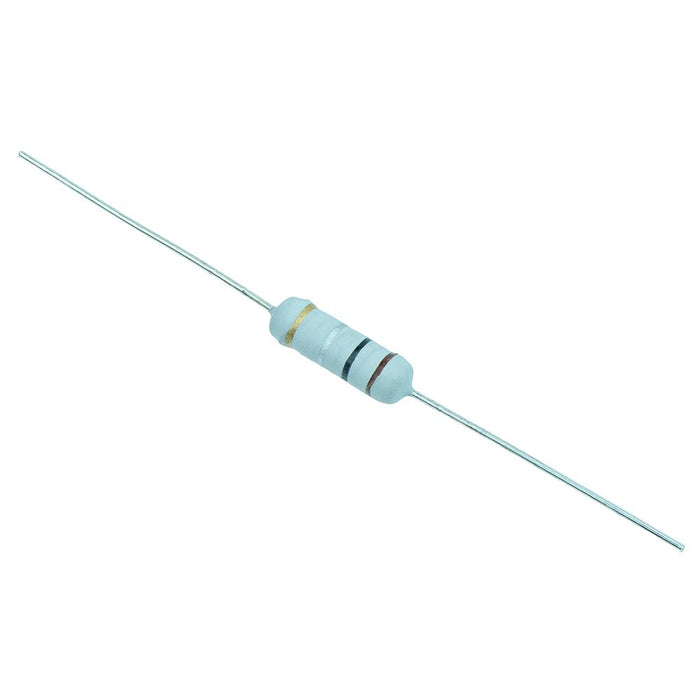

22R Axial 3W Wirewound Resistor 5%

SKU 331010


466 in stock
Original price £0.18 - Original price £0.18
Original price
£0.18 Inc VAT
£0.18 - £0.18
Current price £0.18 Inc VAT
Ceramic wirewound resistors with a flame retardant silicone resin coating, offering excellent stability and heat dissipation.

  • 5% tolerance
  • Power rating: 3W
  • Maximum working voltage: 350V
  • Specification
    Back order lead time 45 Days
    Body dimensions 15 x 5mm
    Lead diameter 0.75mm
    Maximum operating voltage 350V
    Moq 5
    Mpn 331010
    Operating temperature -55°C to +120°C
    Packaging Cut Tape
    Power rating 3W
    Resistance 22Ω
    Temperature coefficient 300ppm/°C
    Termination Axial
    Tolerance ±5%
