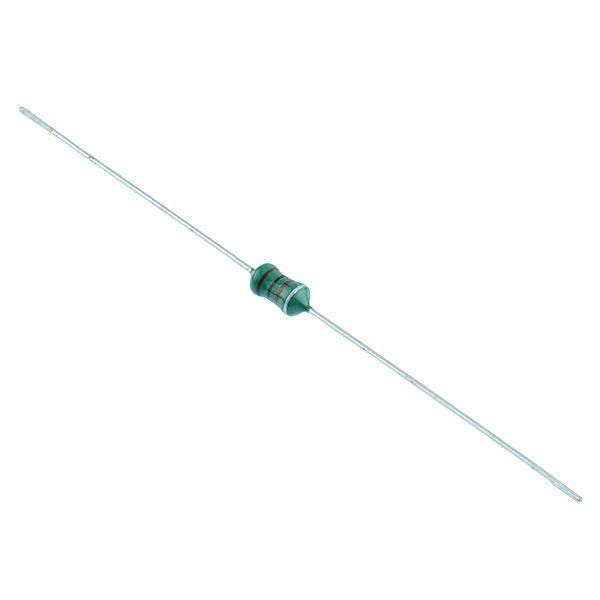

22uH Axial Leaded Inductor

SKU 480015

MPN: 480015

Availability:
224 in stock
Original price £0.19 - Original price £0.19
Original price
£0.19 Inc VAT
£0.19 - £0.19
Current price £0.19 Inc VAT
22uH axial leaded inductor featuring an epoxy resin coating providing high reliability, suitable for general applications including decoupling, RF blocking and suppression.

  • Inductance: 22uH
  • DC current max: 285mA
  • DC resistance: 1.2Ω
  • Body dimensions: 3 x 8mm (Diameter x Length)
  • Lead dimensions: 0.55 x 27mm (Diameter x Length)
  • Specification
    Back order lead time 5 Days
    Body dimensions 8.0 x 3.0mm
    Dc current 285mA
    Dc resistance 1.2Ω
    Moq 10
    Q min 60
    Srf 13MHz
    Tolerance ±10%
