22V 1.3W Zener Diode DO-41 BZX85C22
SKU 552188
MPN: BZX85C22
Availability:
81 in stock
Original price
£0.11
-
Original price
£0.11
Original price
£0.11
Inc VAT
£0.11
-
£0.11
Current price
£0.11
Inc VAT

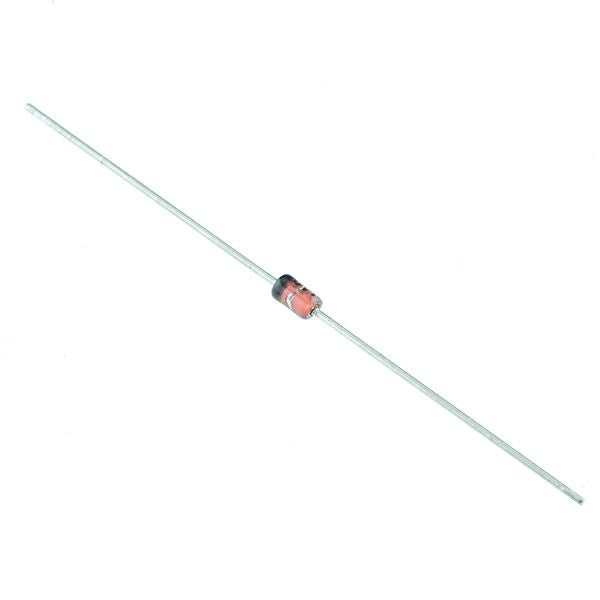

22V zener diode with a 1.3W power dissipation housed in a DO-41 package, suitable for thought hole applications including stabilising and clipping circuits with a high power.
Cathode identified by polarity band Sealed glass package Tolerance: ±5% BZX85C Taiwan Semiconductor series
Specification
| Back order lead time | 5 Days |
| Body dimensions | 4.5 x 2.4mm (Length x Diameter) |
| Lead dimensions | 22 x 0.79mm (Length x Diameter) |
| Maximum reverse leakage | 0.5μA |
| Maximum zener impedance | 25Ω |
| Moq | 10 |
| Operating temperature | -65°C to 200°C |
| Package | DO-41 |
| Packaging | Tape |
| Power dissipation | 1.3W |
| Test current | 10mA |
| Zener voltage | 22V |
| Zener voltage tolerance | ±5% |
