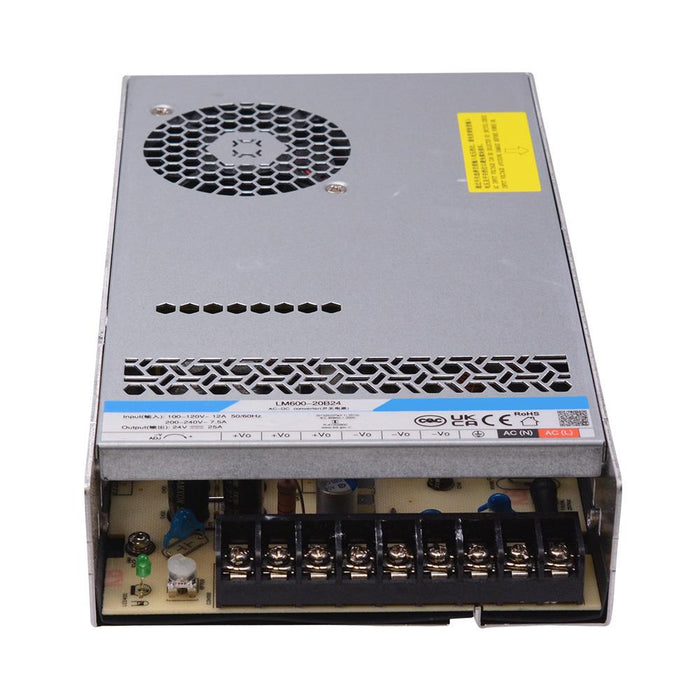

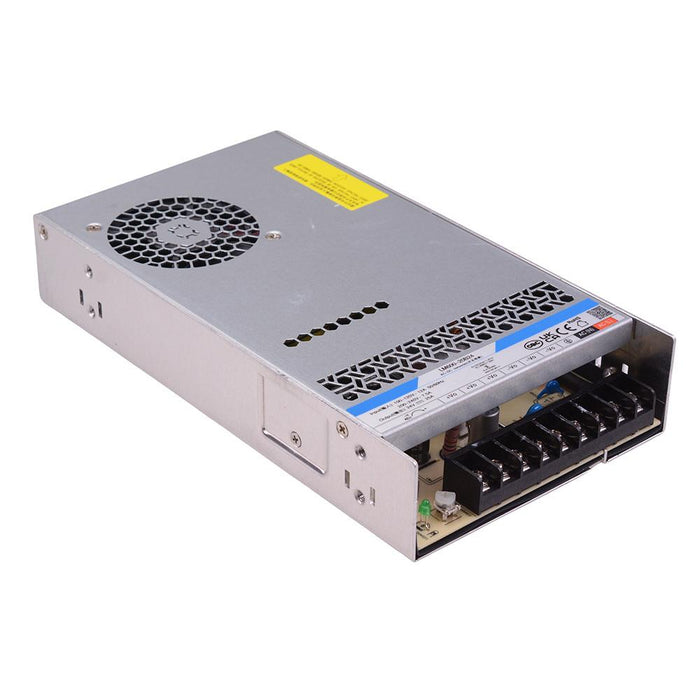

24V 25A Enclosed Switching Power Supply 600W

SKU 490402

MPN: SE600-20B24

Availability:
10 in stock
Original price £61.58 - Original price £61.58
Original price
£61.58
£61.58 - £61.58
Current price £61.58
24V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets UL/EN/BS EN/IEC62368, EN/IEC60335, EN61558, GB4943 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.

  • Output voltage: 24V
  • Output current: 25A
  • Power: 600W
  • Adjustable output voltage range: 22.8-26.4V
  • Input voltage: 90-132VAC, 180-264VAC, 255-370VDC
  • Efficiency at 230VAC: 91%
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • M4 screw terminals
  • Wire range: 14-10AWG
  • Dimensions: 225.0 x 124.0 x 41.0mm (length x width x height)
  • Specification
    Back Order Lead Time 120 Days
    Input Frequency 47-63Hz
    Input Voltage 90-132VAC, 180-264VAC, 255-370VDC
    Maximum Temperature 70°C
    MOQ 1
    Output Connector M4 Screw
    Output Current 25A
    Output Voltage 24VDC
    Over Current Protection Yes
    Over Temperature Protection Yes
    Over Voltage Protection Yes
    Power Rating 1000W
    Short Circuit Protection Yes
