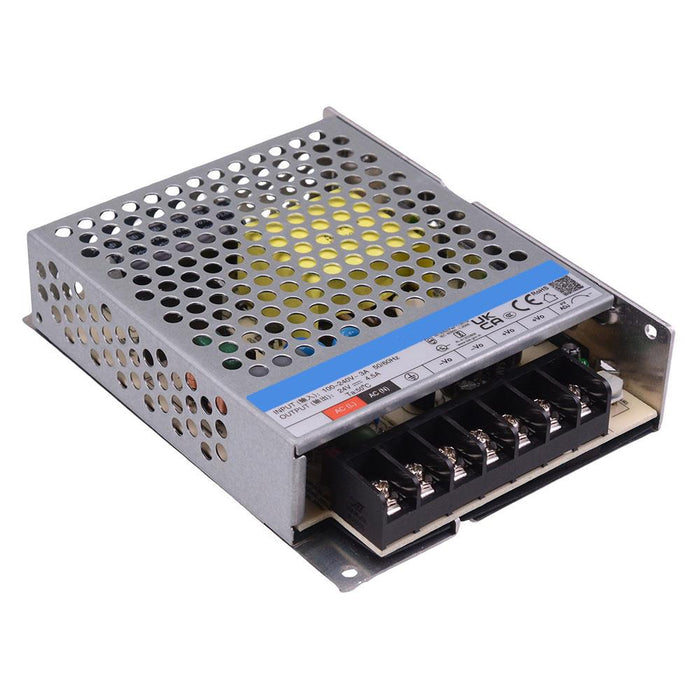

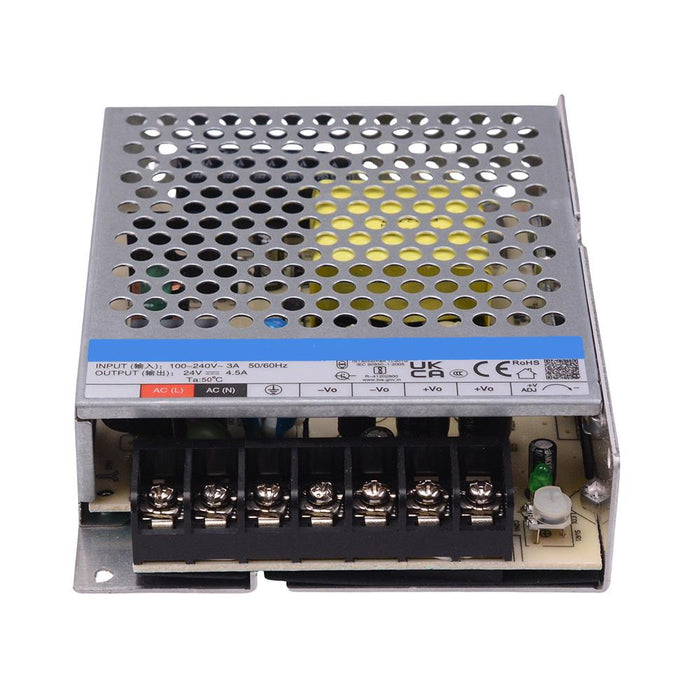

24V 4.5A Enclosed Switching Power Supply 100W

24V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.

Output voltage: 24V

Output current: 4.5A

Power: 108W

Adjustable output voltage range: 21.6-28.8V

Input voltage: 85-264VAC, 120-370VDC

Efficiency at 230VAC: 89.5%

Output short circuit, over-current, over-voltage protection

M3 screw terminals

Wire range: 22-12AWG

Dimensions: 129.0 x 97.0 x 30.0mm (length x width x height)
