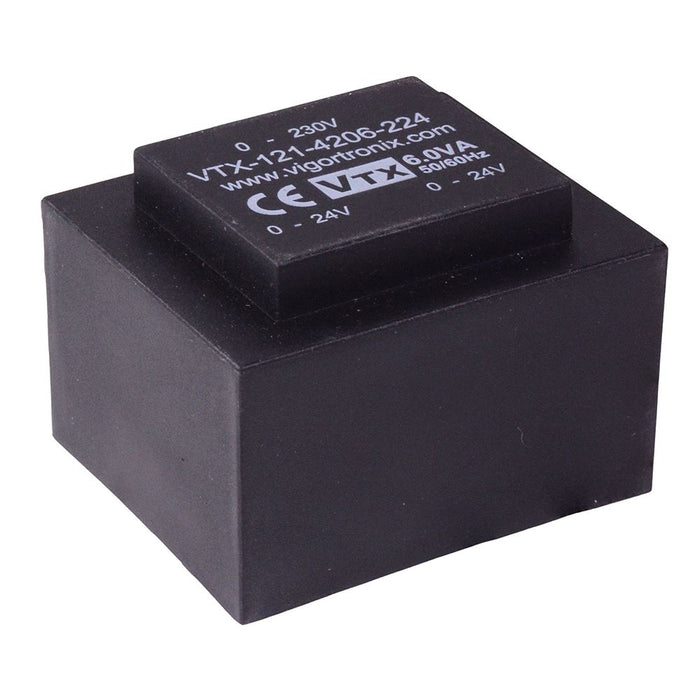

24V 6VA Encapsulated PCB Transformer 230V VTX-121-4206-224
by Vigortronix
SKU 486999
MPN: VTX-121-4206-224
Availability:
7 in stock
Original price
£7.86
-
Original price
£7.86
Original price
£7.86
Inc VAT
£7.86
-
£7.86
Current price
£7.86
Inc VAT
24V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 6VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.
230V input voltage 2 x 24V output voltage 6VA power rating 125mA output current Inherently Short-circuit proof Materials: UL94-V0 Manufactured and tested in accordance to EN61558, EN60950, CE UL, VDE and CE approved Dimensions: 44 x 37 x 32mm (length x width x height)
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 4200Vrms |
| Height | 32mm |
| Length | 44mm |
| Maximum ambient temperature | 70°C |
| Output current | 0.125A |
| Power | 6VA |
| Primary voltage | 230V |
| Secondary voltage | 2 x 24V |
| Weight | 190g |
| Width | 37mm |
