24V AC-DC 1W Single Output Power Supply VTX-214-001-124
by Vigortronix
SKU 480332
MPN: VTX-214-001-124
Availability:
7 in stock
Original price
£4.91
-
Original price
£4.91
Original price
£4.91
£4.91
-
£4.91
Current price
£4.91

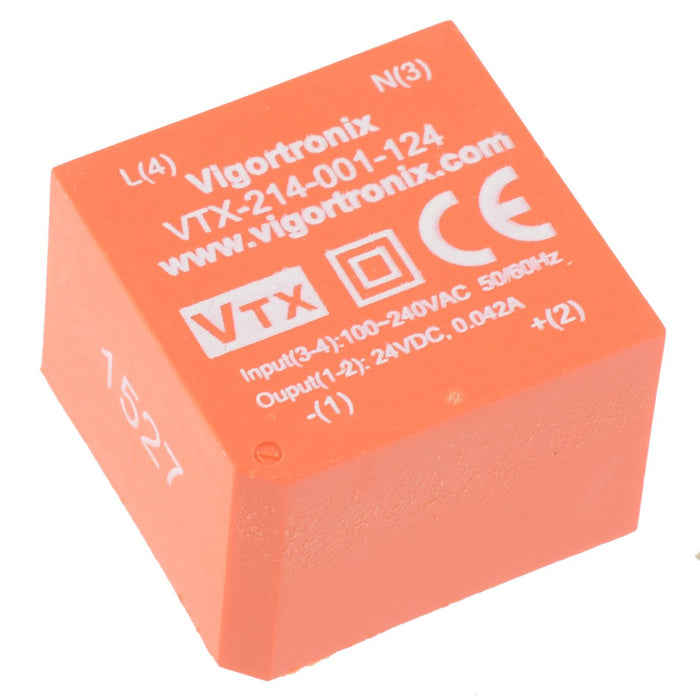

The VTX-214-001-124 is a AC-DC power supply featuring a 1W single output producing a 24V voltage. The transformer features a compact size suitable for PCB applications with limited space.
Regulated single output
Input: 90-265VAC, 47-63Hz (100-370VDC)
Output voltage: 24VDC
Output current: 200mA
Low ripple & noise
Encapsulated design
Safety appovals: EN61558, EN60950, CE
Specification
| Ambient Temperature | 70°C |
| Back Order Lead Time | 5 Days |
| Input Voltage | 90-265VAC (100-370VDC) |
| Output Current | 42mA |
| Output Voltage | 24VDC |
| Power Rating | 1W |
