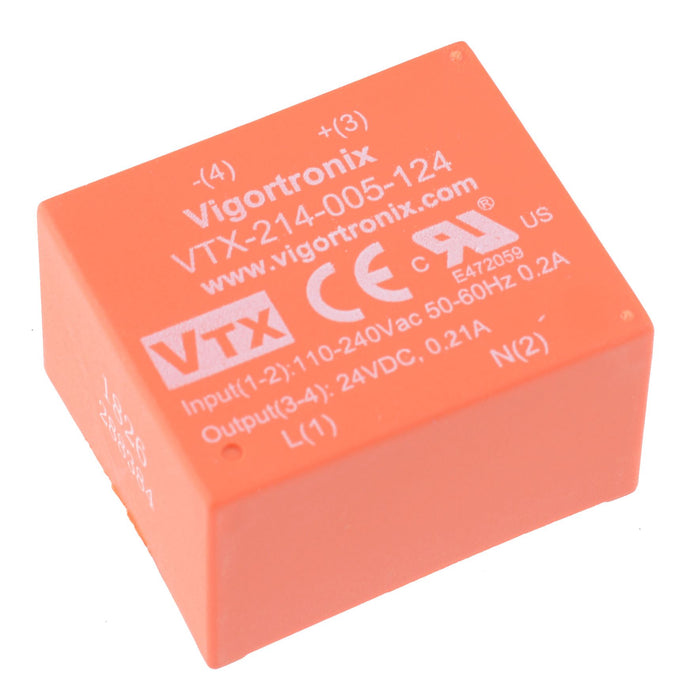

24V AC-DC 5W Single Output Power Supply VTX-214-005-124

SKU 480342

MPN: VTX-214-005-124

Availability:
Only 2 left!
Original price £7.25 - Original price £7.25
Original price
£7.25
£7.25 - £7.25
Current price £7.25
The VTX-214-005-124 is a AC-DC power supply featuring a 5W single output producing a 24V voltage. The transformer features a compact size suitable for PCB applications with limited space.

  • Regulated single output
  • Input: 90-265VAC, 47-63Hz (100-370VDC)
  • Output voltage: 24VDC
  • Output current: 208mA
  • Low ripple & noise
  • Encapsulated design
  • Safety appovals: EN61558, EN60950, CE, UL
  • Specification
    Ambient Temperature 50°C
    Back Order Lead Time 5 Days
    Input Voltage 90-265VAC (100-370VDC)
    Output Current 208mA
    Output Voltage 24VDC
    Power Rating 5W
